Technosoft Raamwerken output: steel beam HEA 180

The complete output (22 sheets, in Dutch) of the Technosoft Raamwerken calculation of a HEA 180 S235 beam over 4.15 m that is compared with StruCla on the comparison page. Project name, address, client and file reference have been removed.

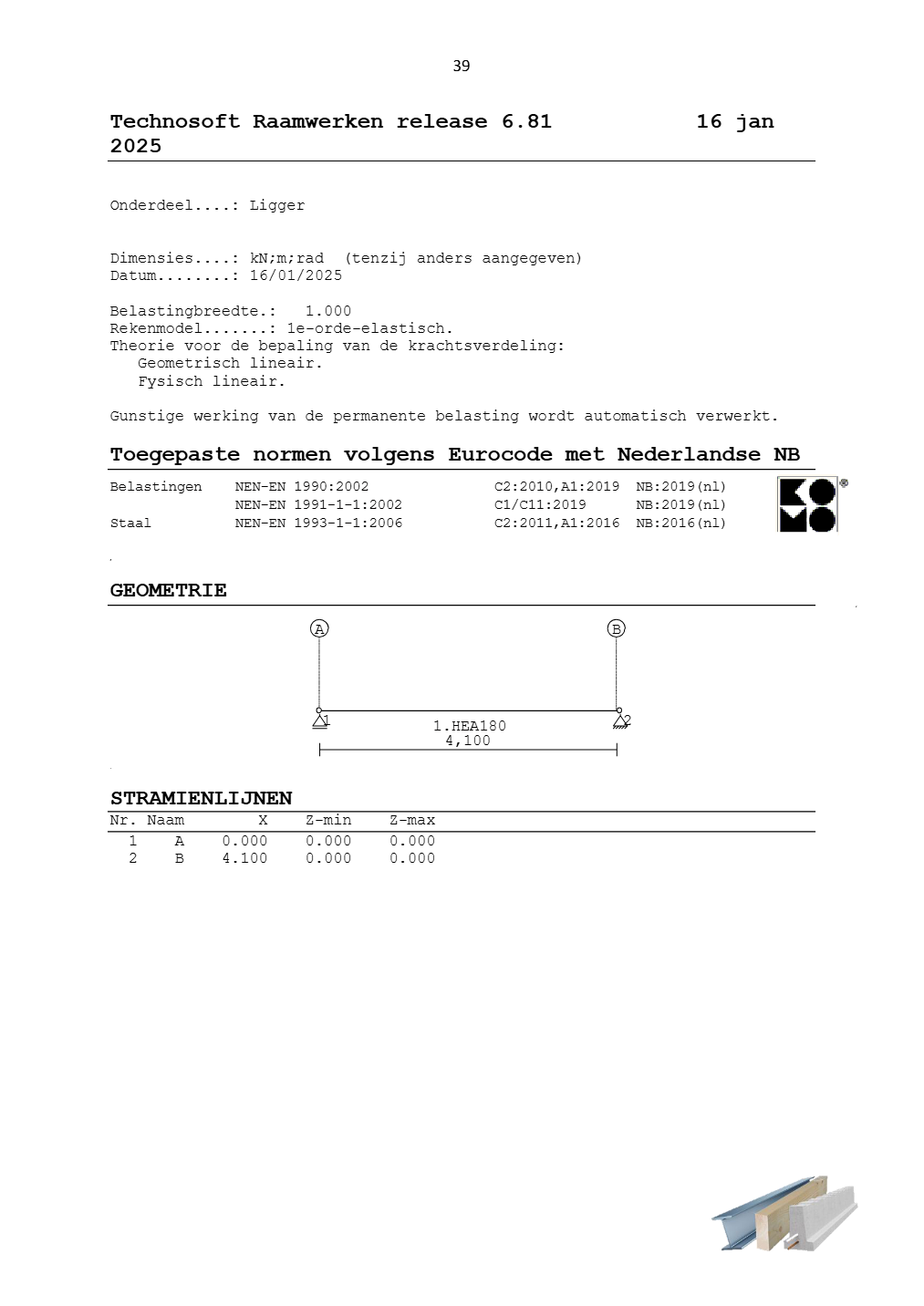

Technosoft Raamwerken output of a steel beam, sheet 39
Sheet 39

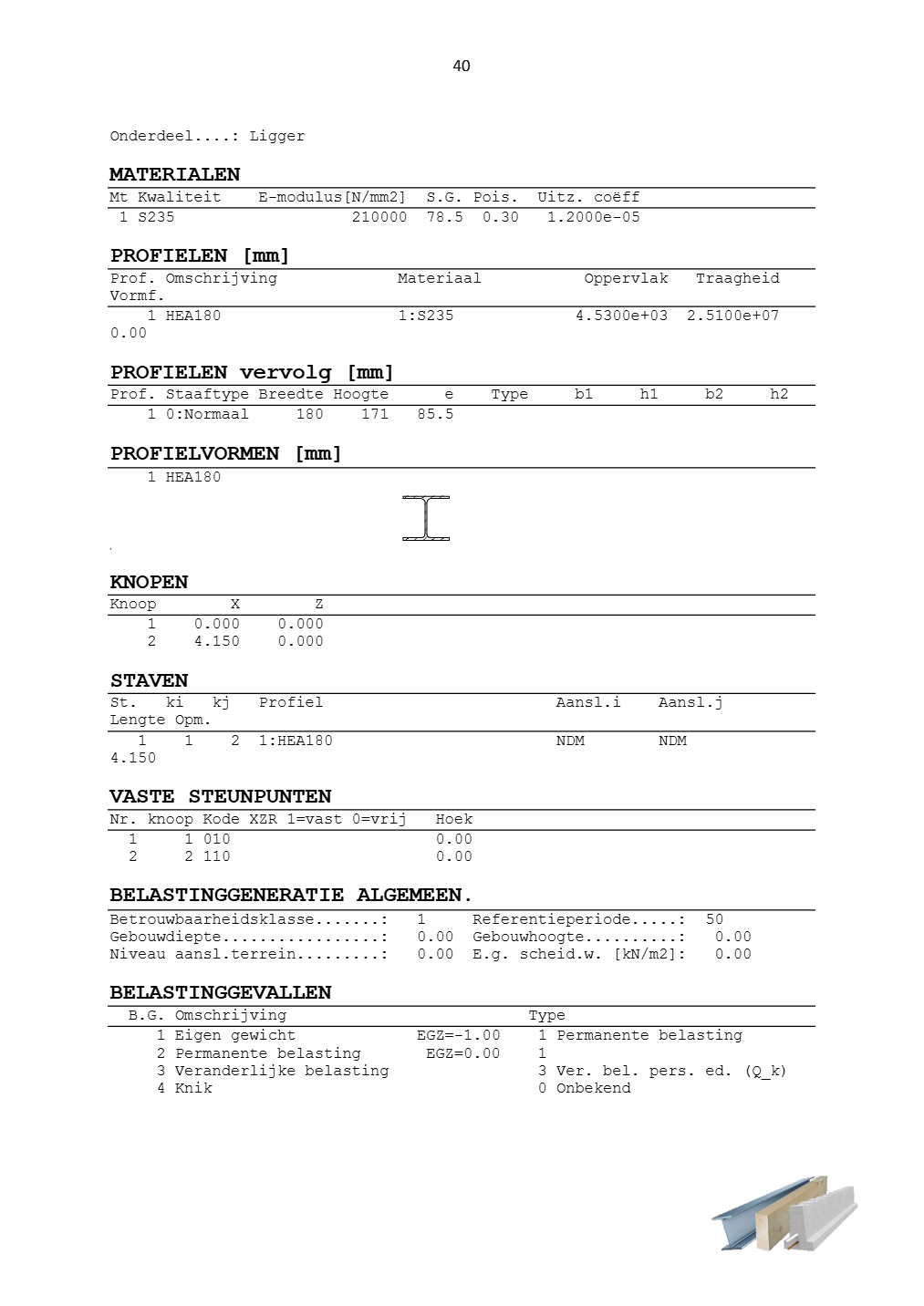

Technosoft Raamwerken output of a steel beam, sheet 40
Sheet 40

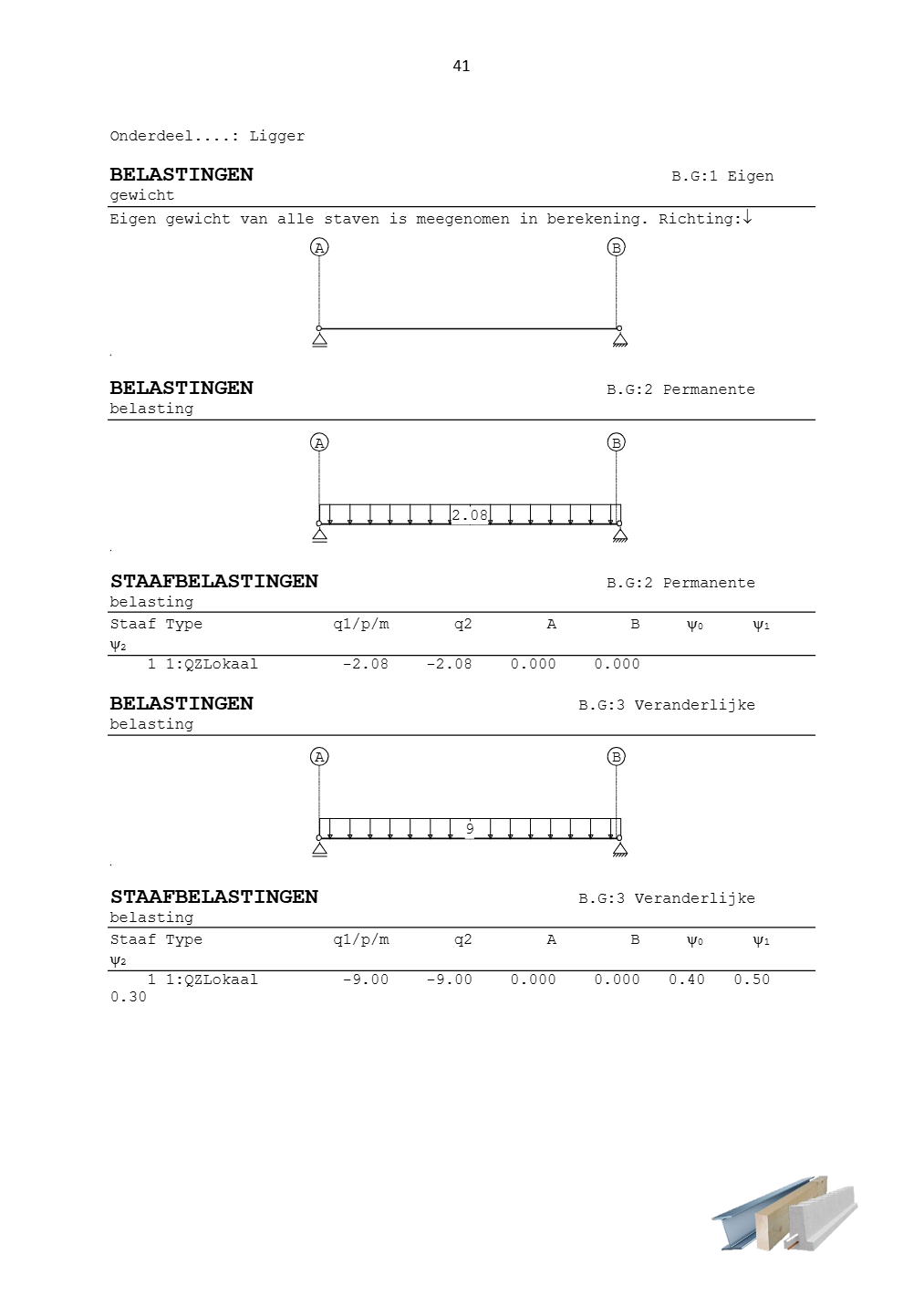

Technosoft Raamwerken output of a steel beam, sheet 41
Sheet 41

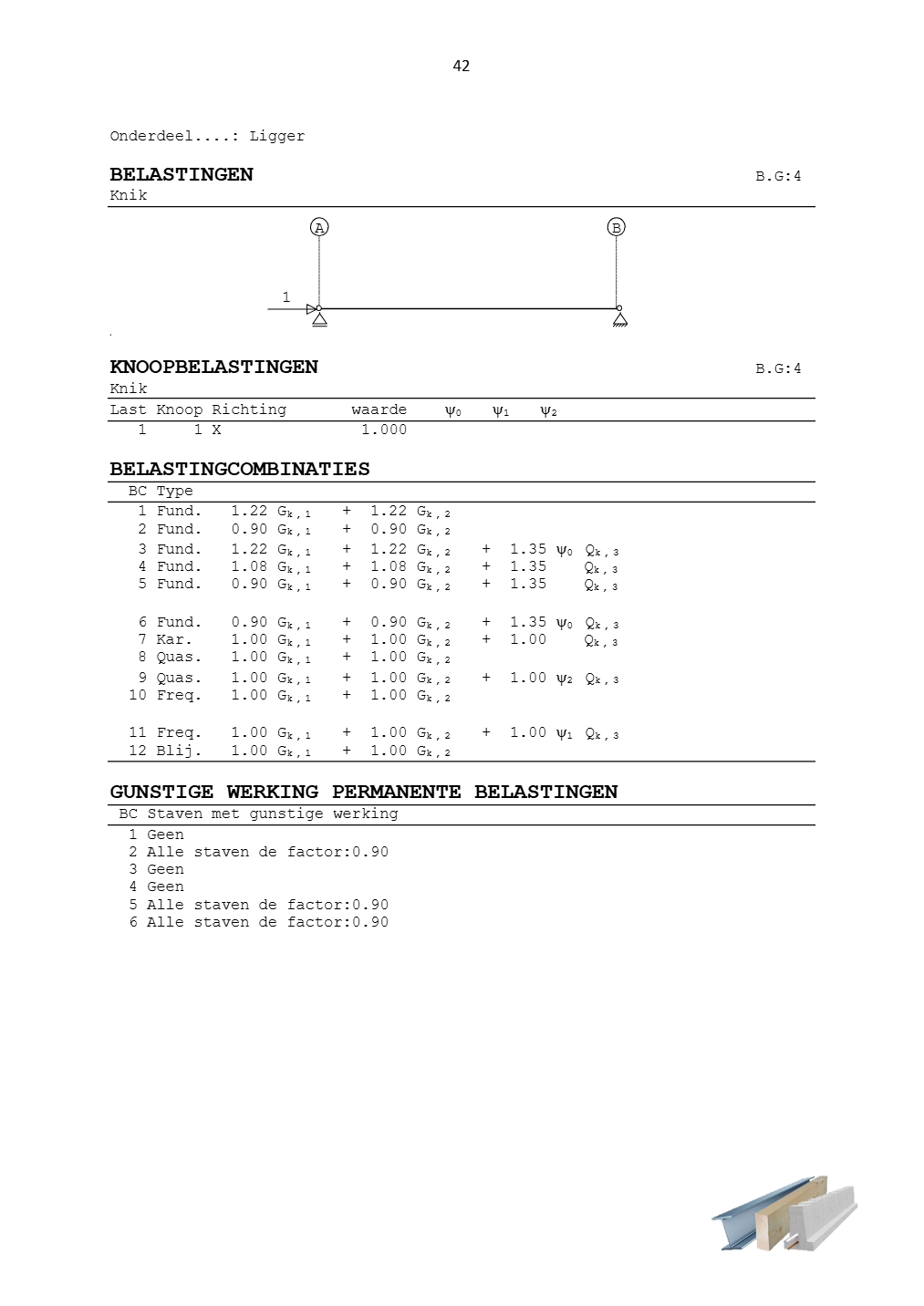

Technosoft Raamwerken output of a steel beam, sheet 42
Sheet 42
Technosoft Raamwerken output of a steel beam, sheet 43
Sheet 43
Technosoft Raamwerken output of a steel beam, sheet 44
Sheet 44

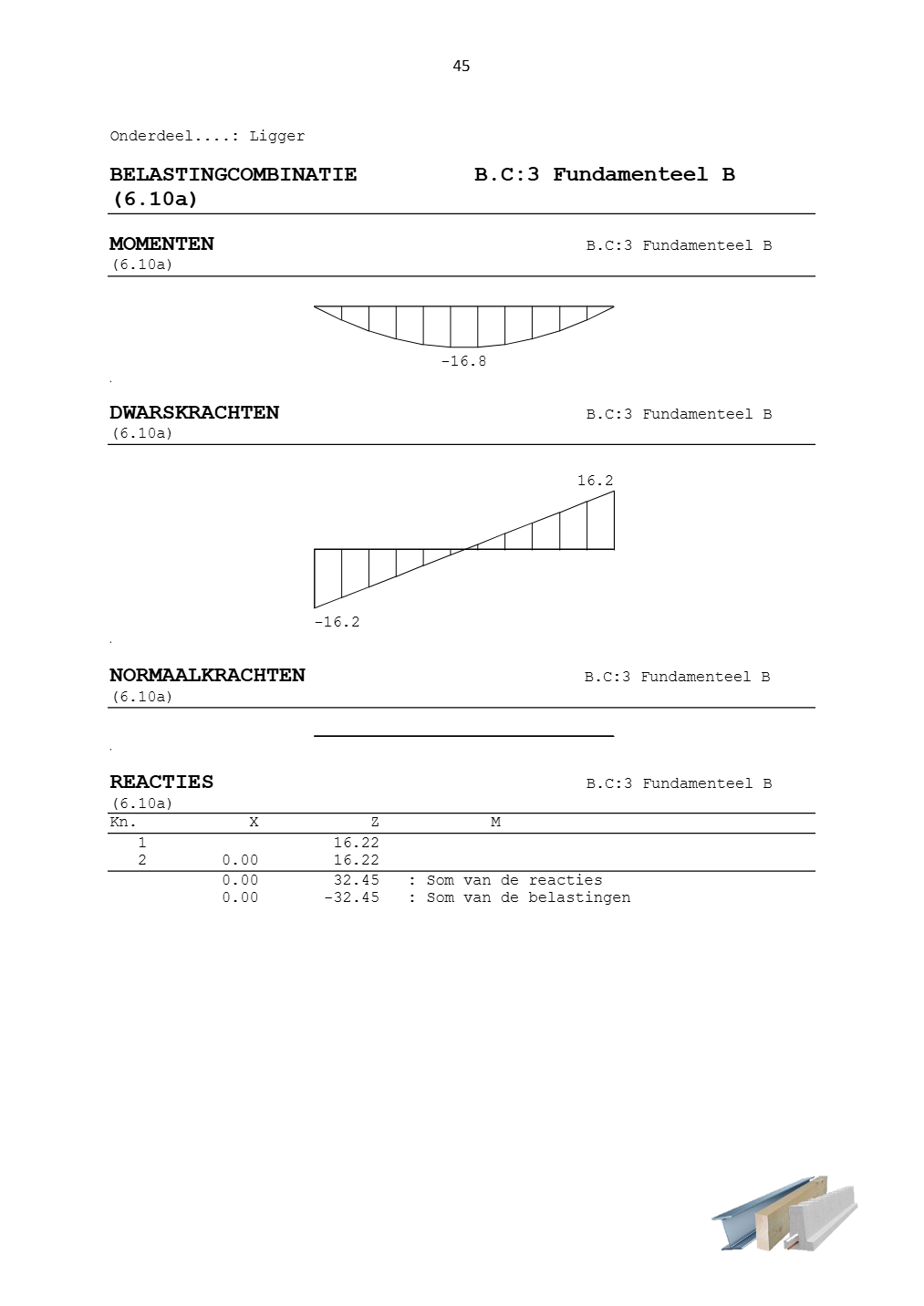

Technosoft Raamwerken output of a steel beam, sheet 45
Sheet 45
Technosoft Raamwerken output of a steel beam, sheet 46
Sheet 46
Technosoft Raamwerken output of a steel beam, sheet 47
Sheet 47
Technosoft Raamwerken output of a steel beam, sheet 48
Sheet 48

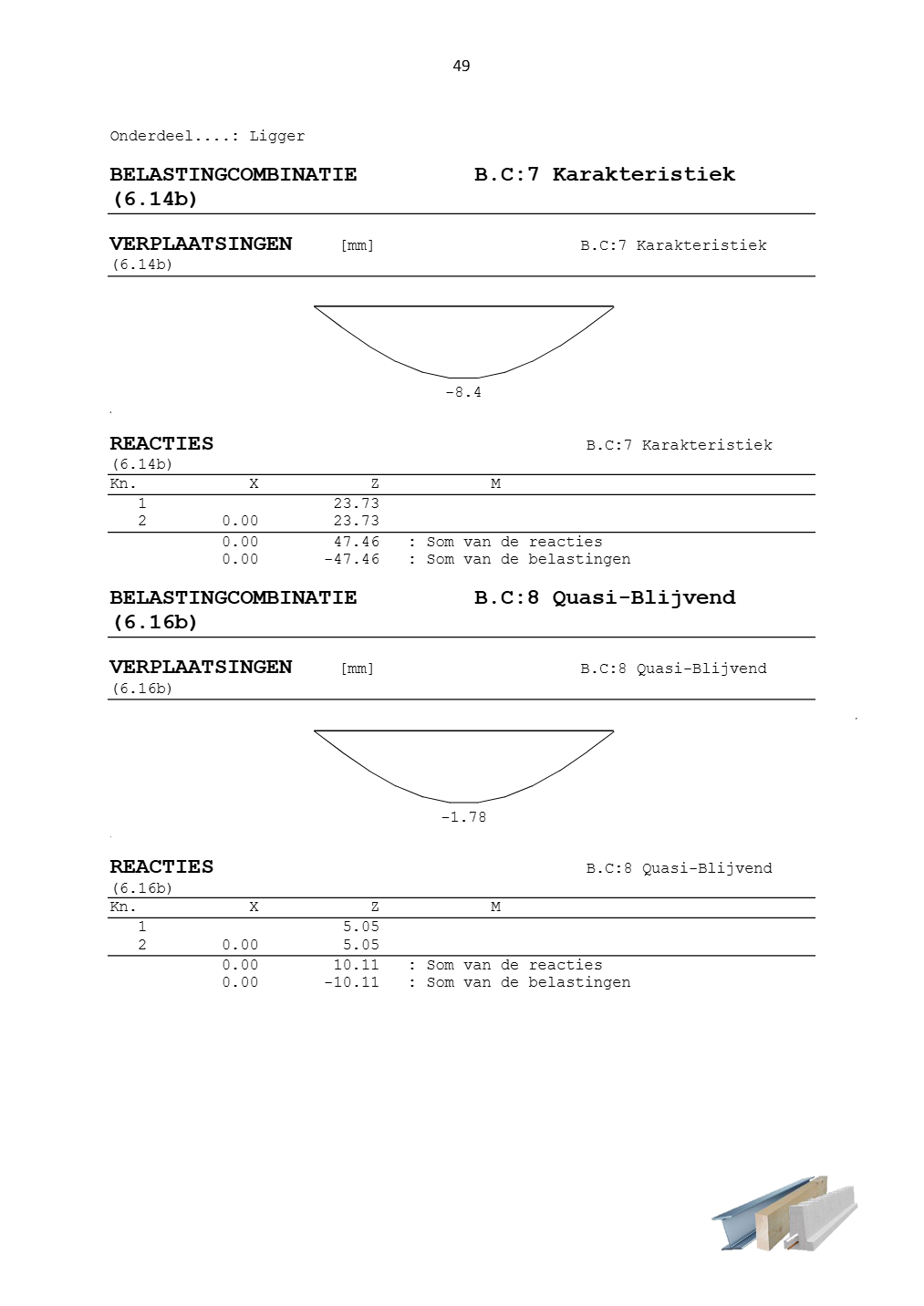

Technosoft Raamwerken output of a steel beam, sheet 49
Sheet 49

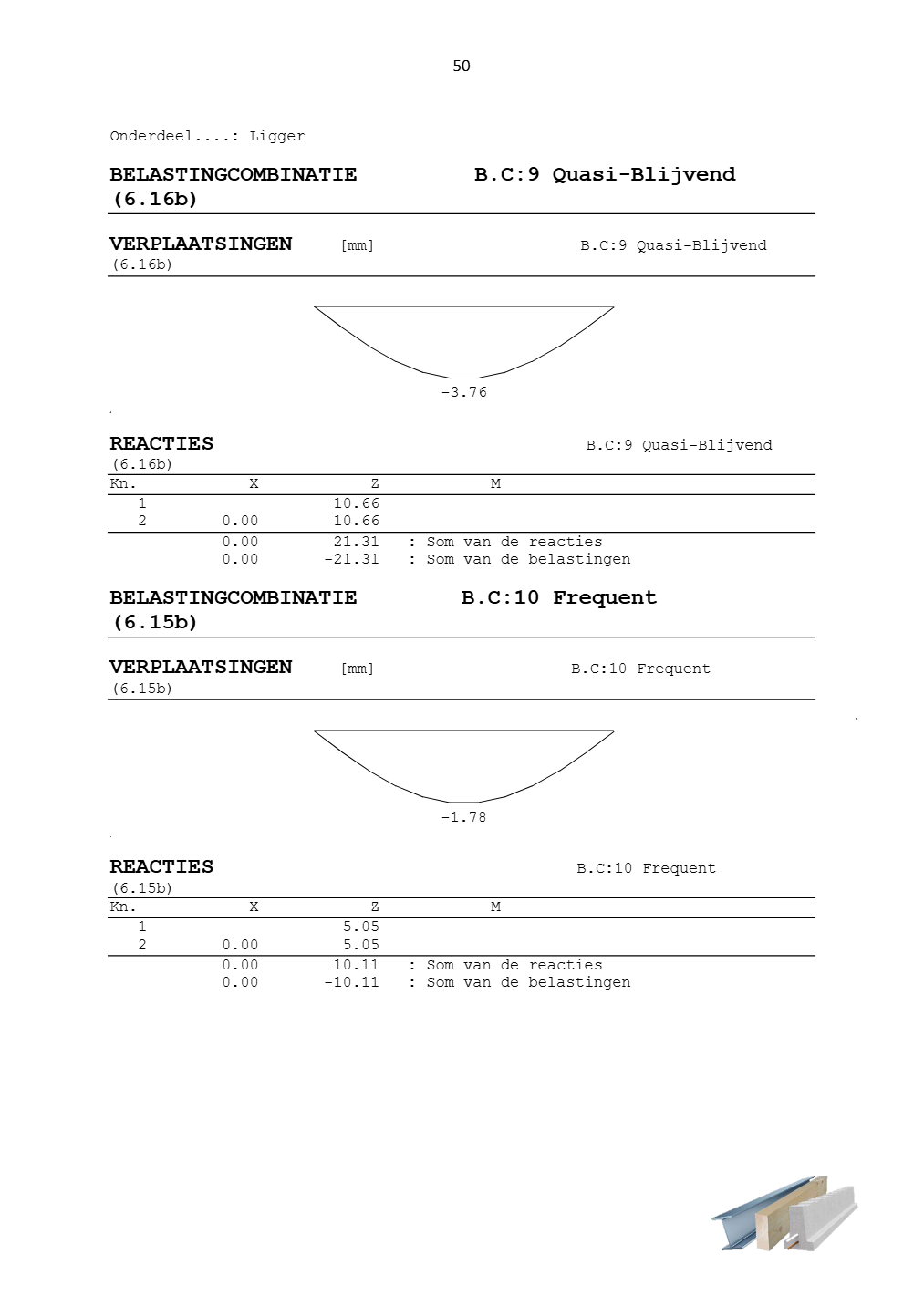

Technosoft Raamwerken output of a steel beam, sheet 50
Sheet 50

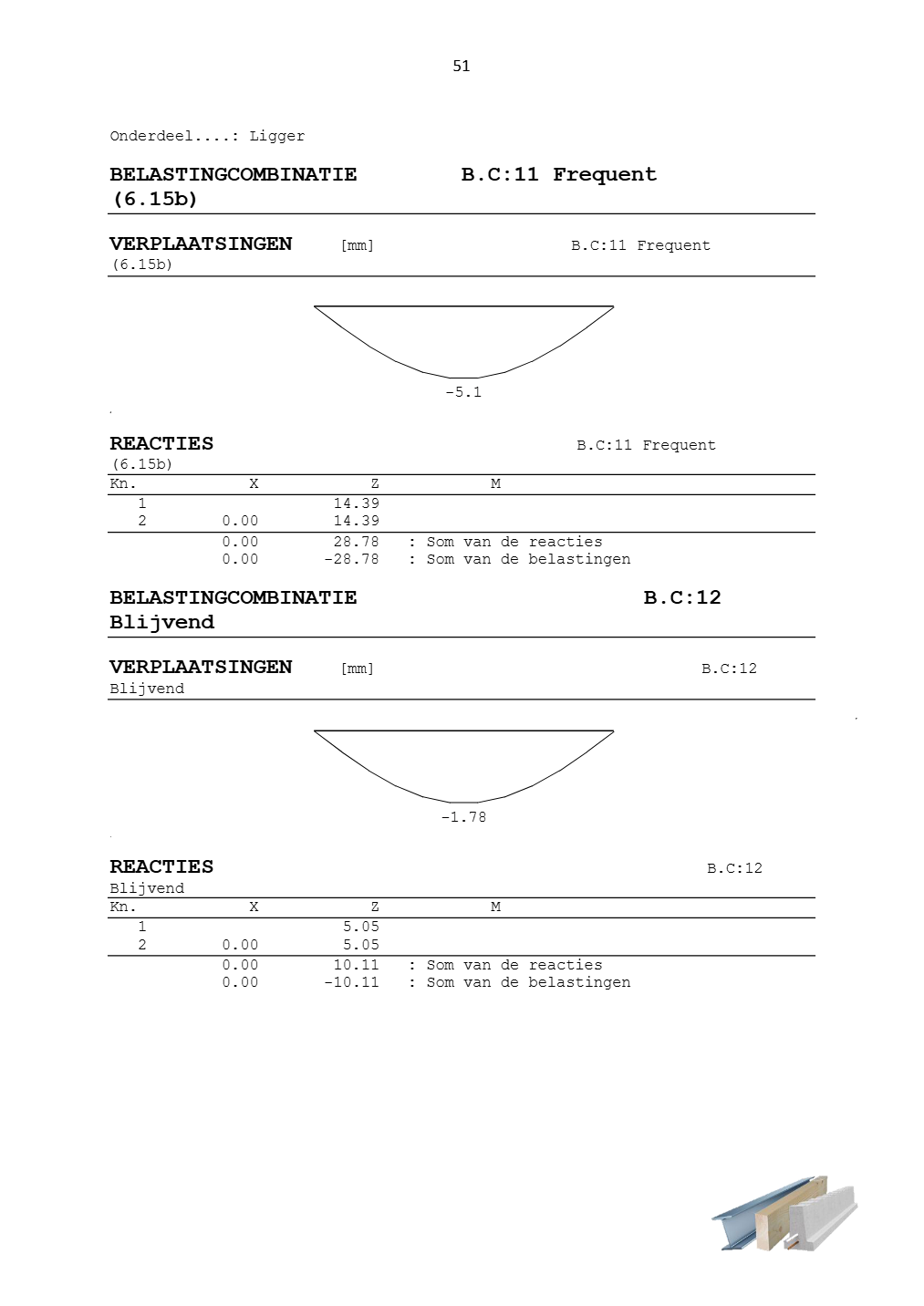

Technosoft Raamwerken output of a steel beam, sheet 51
Sheet 51

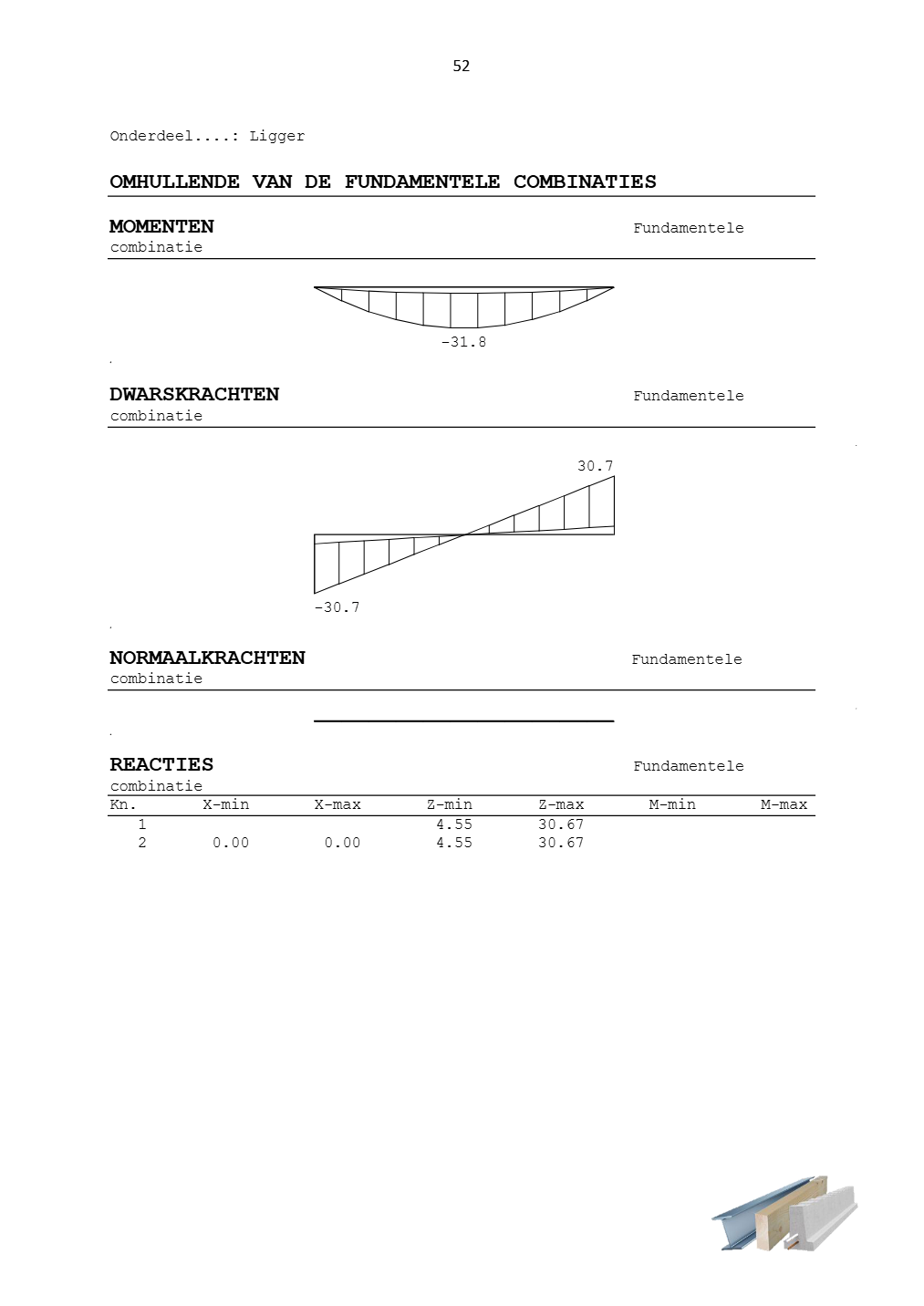

Technosoft Raamwerken output of a steel beam, sheet 52
Sheet 52

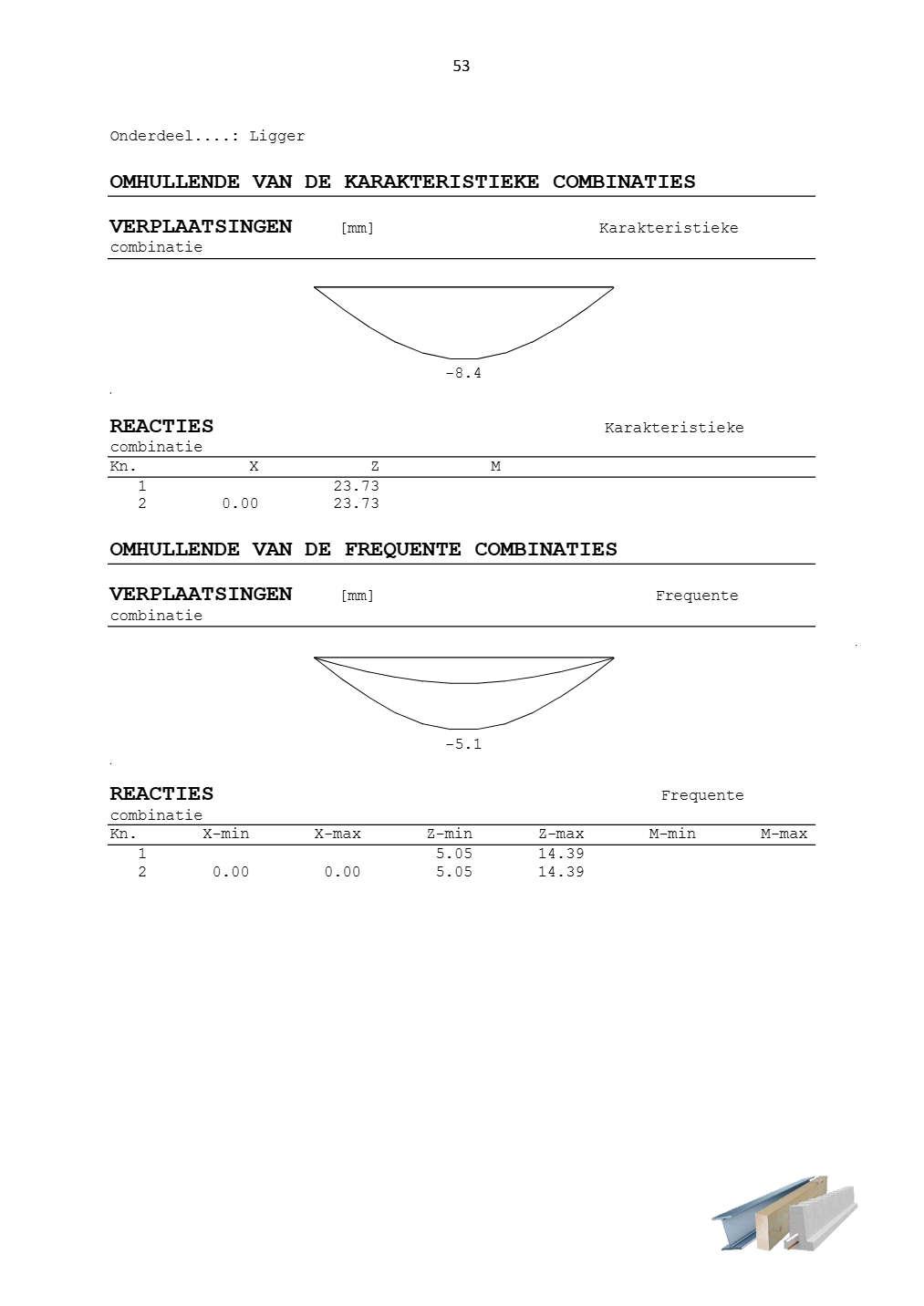

Technosoft Raamwerken output of a steel beam, sheet 53
Sheet 53

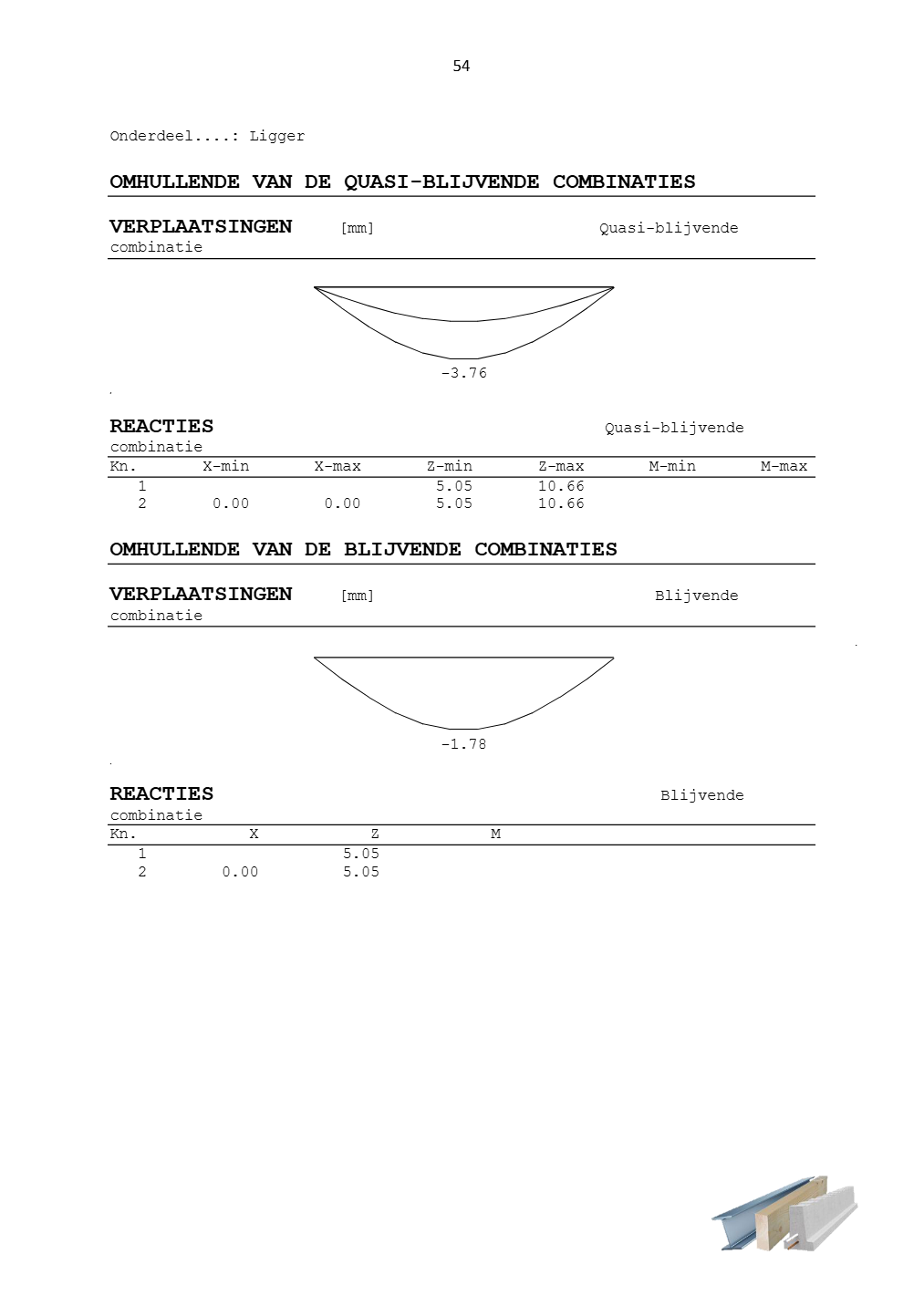

Technosoft Raamwerken output of a steel beam, sheet 54
Sheet 54

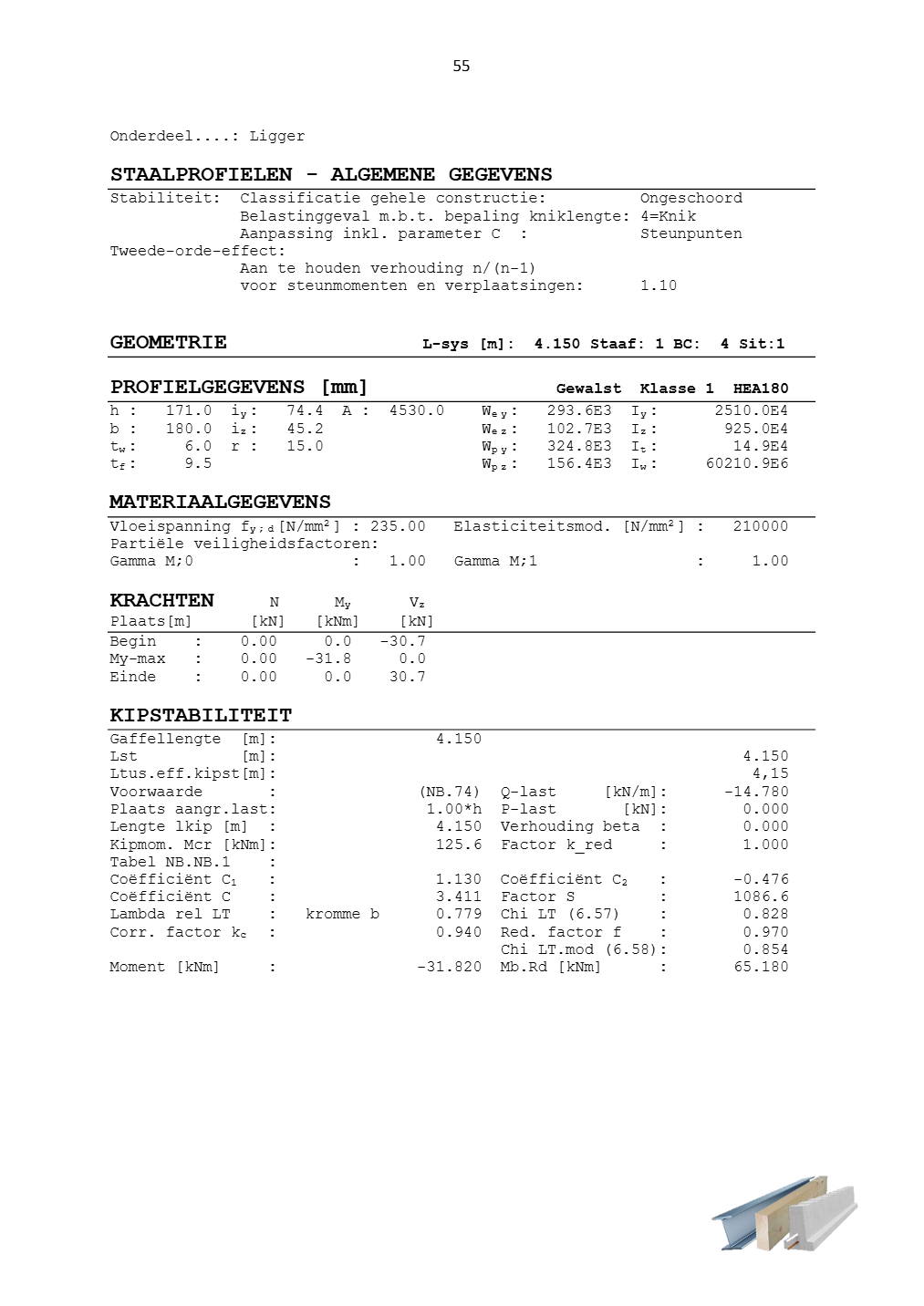

Technosoft Raamwerken output of a steel beam, sheet 55
Sheet 55

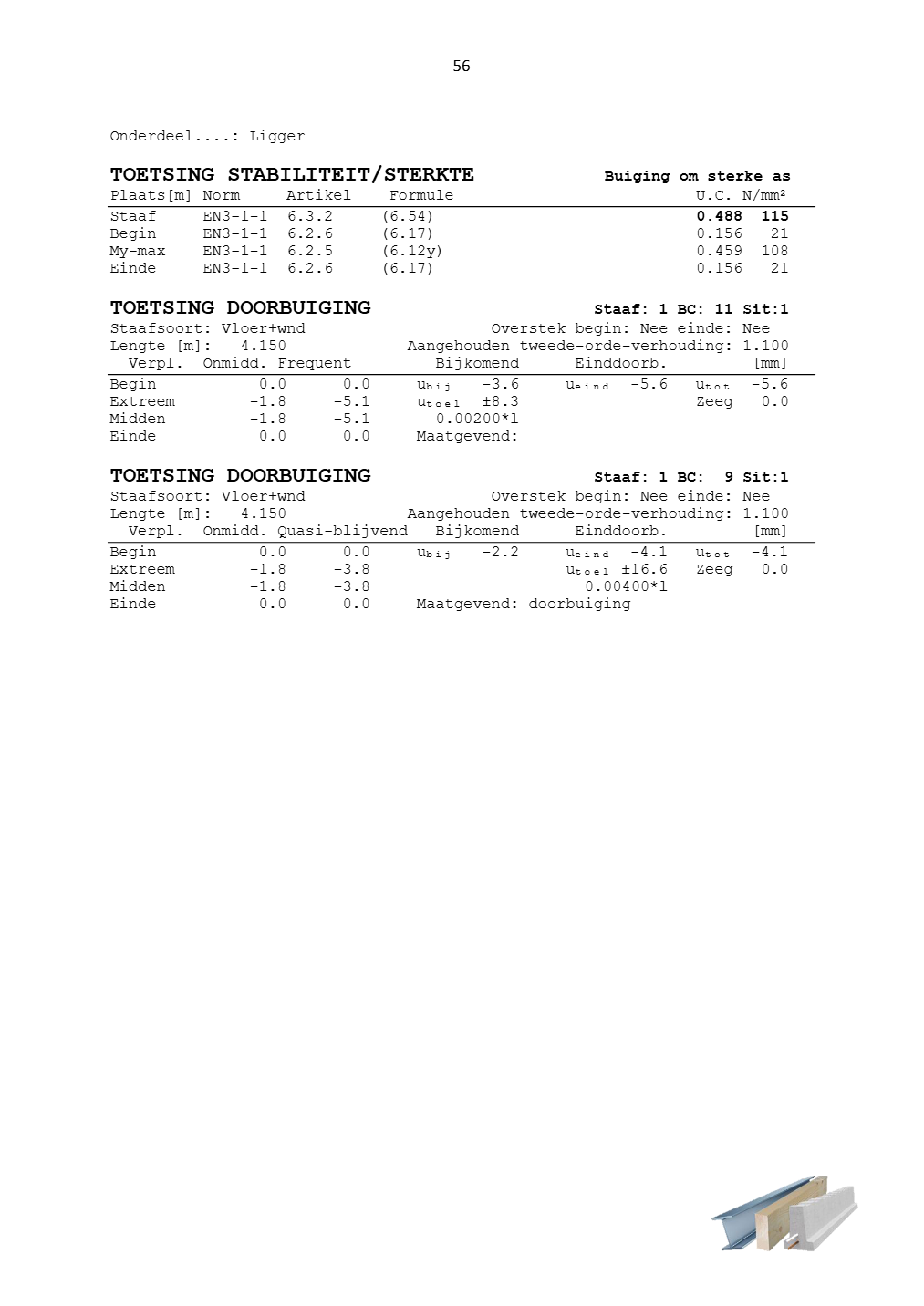

Technosoft Raamwerken output of a steel beam, sheet 56
Sheet 56

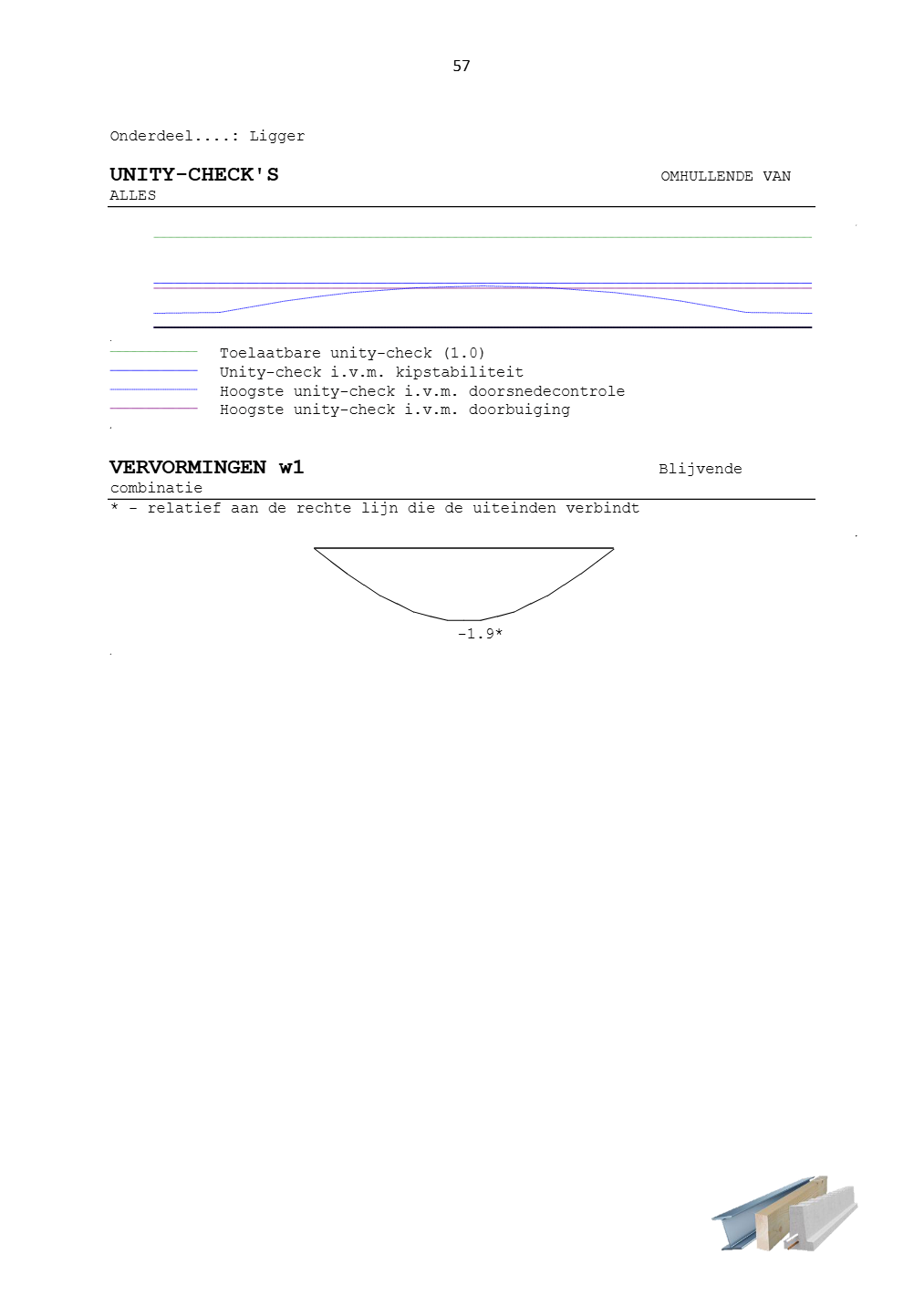

Technosoft Raamwerken output of a steel beam, sheet 57
Sheet 57
Technosoft Raamwerken output of a steel beam, sheet 58
Sheet 58
Technosoft Raamwerken output of a steel beam, sheet 59
Sheet 59

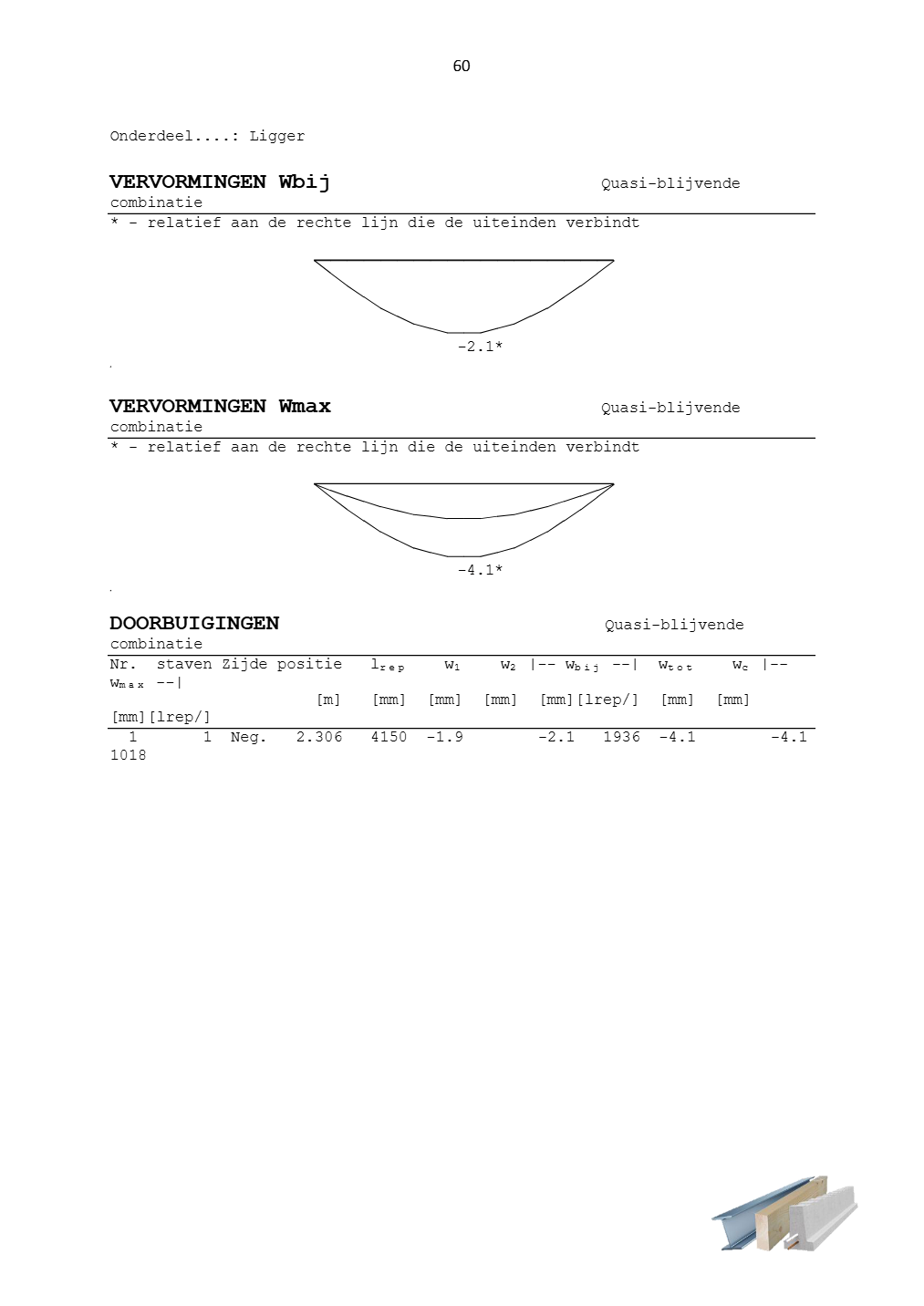

Technosoft Raamwerken output of a steel beam, sheet 60
Sheet 60
