Technosoft Raamwerken output: timber beam

The complete output (27 sheets, in Dutch) of the Technosoft Raamwerken calculation of Beam 1, a 50×100 mm C24 timber beam over 1.5 m, that is compared with StruCla on the comparison page. Project name, client, company name and file path have been removed.

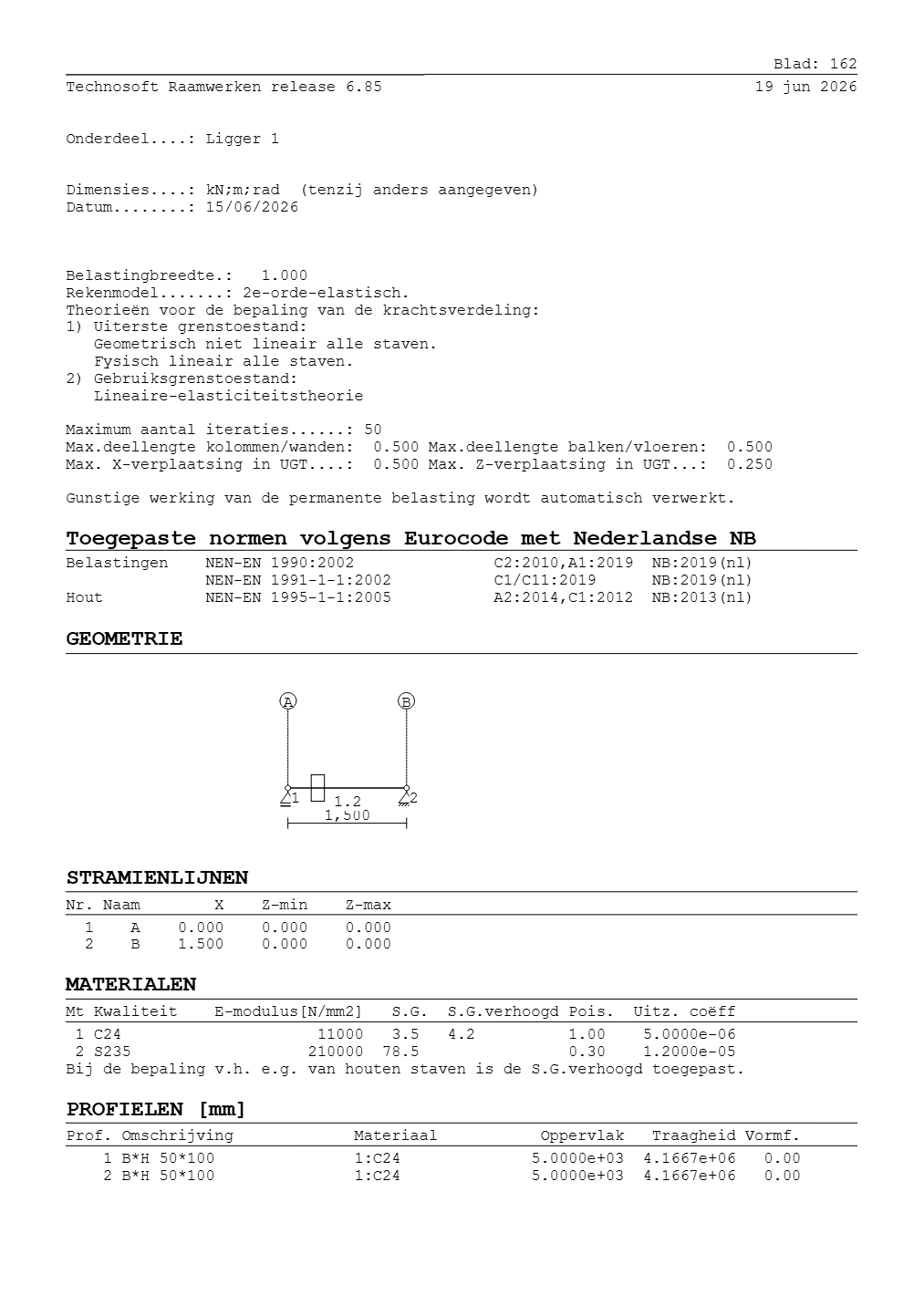

Technosoft Raamwerken output, sheet 162 of Beam 1
Sheet 162

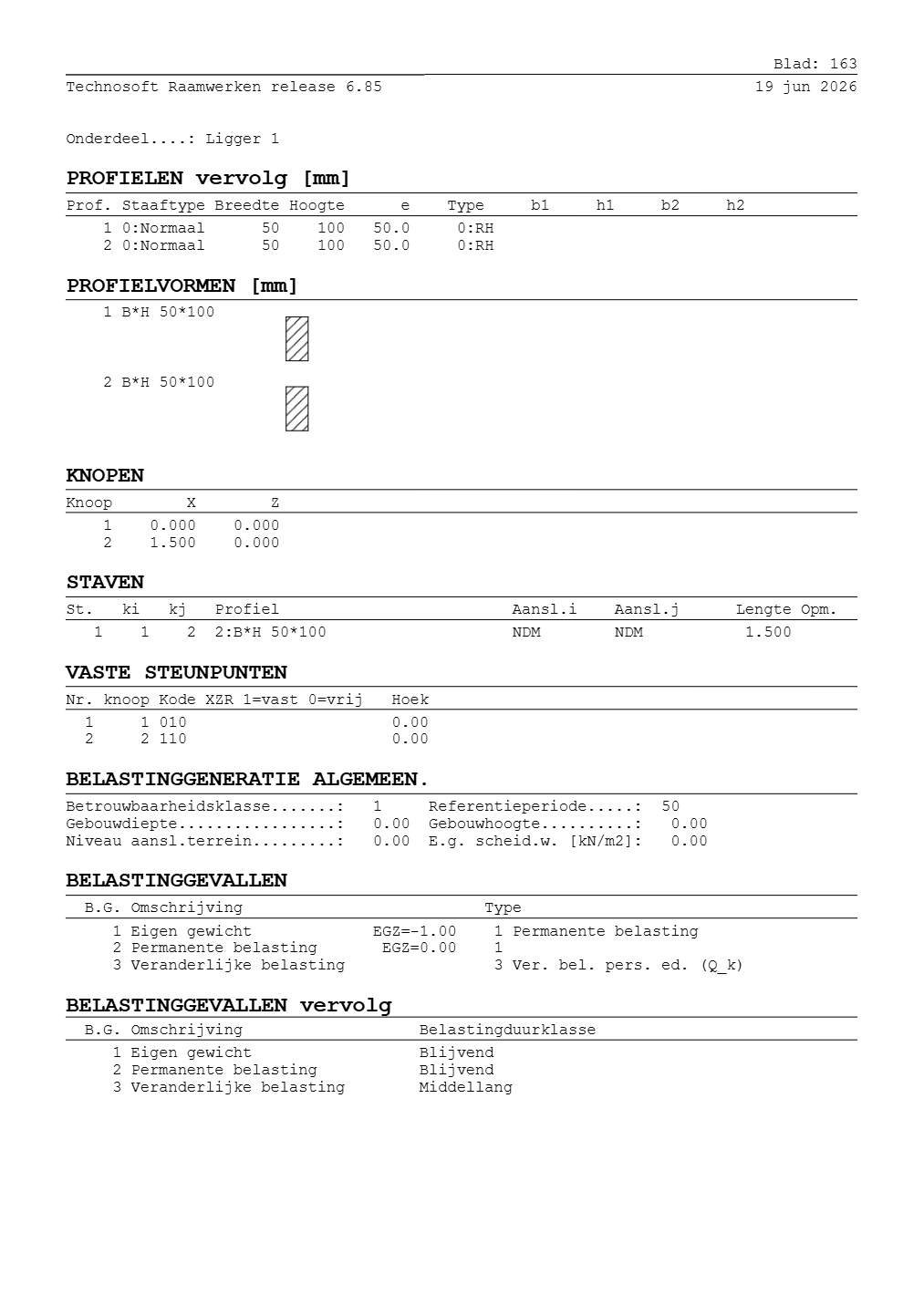

Technosoft Raamwerken output, sheet 163 of Beam 1
Sheet 163

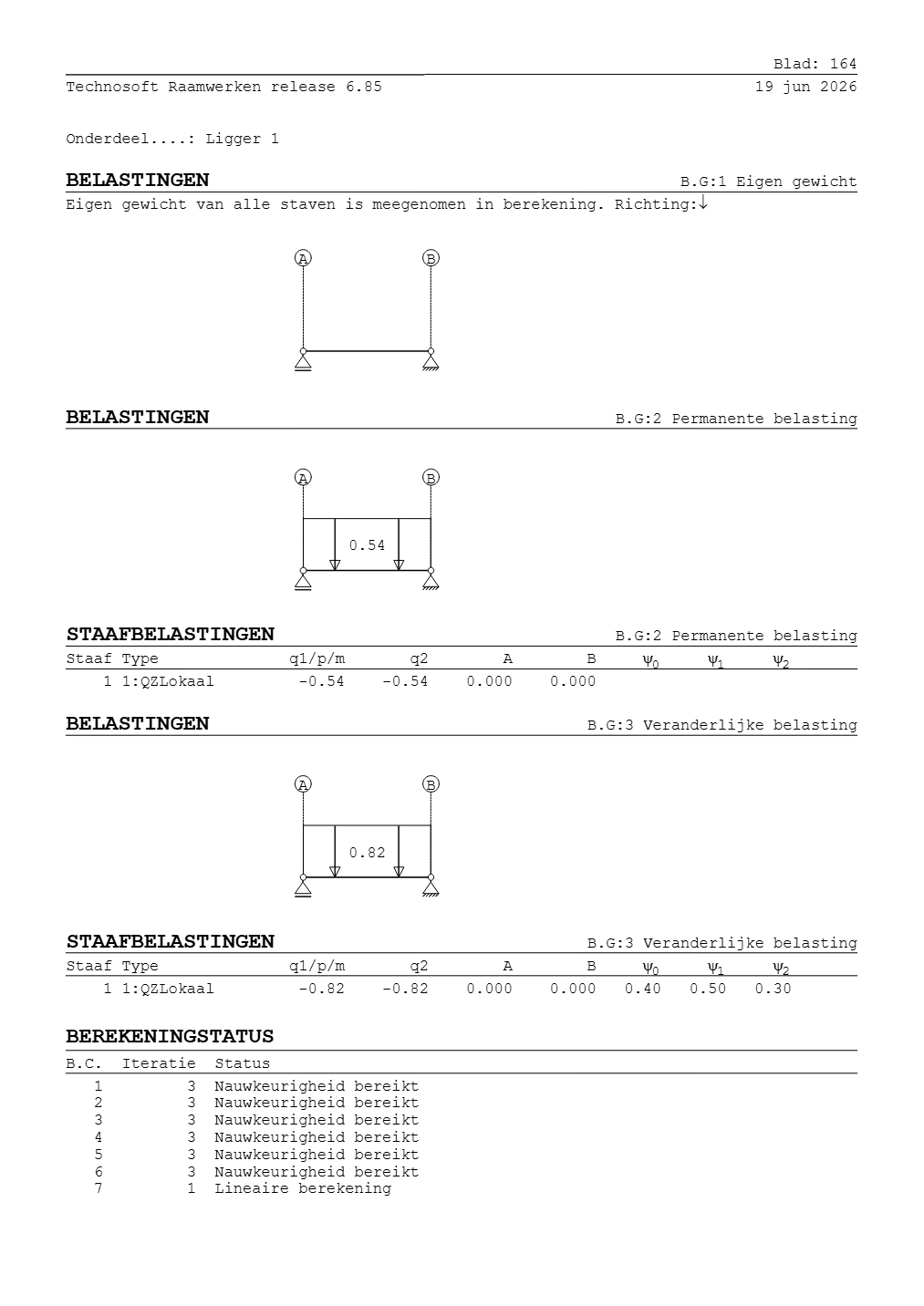

Technosoft Raamwerken output, sheet 164 of Beam 1
Sheet 164

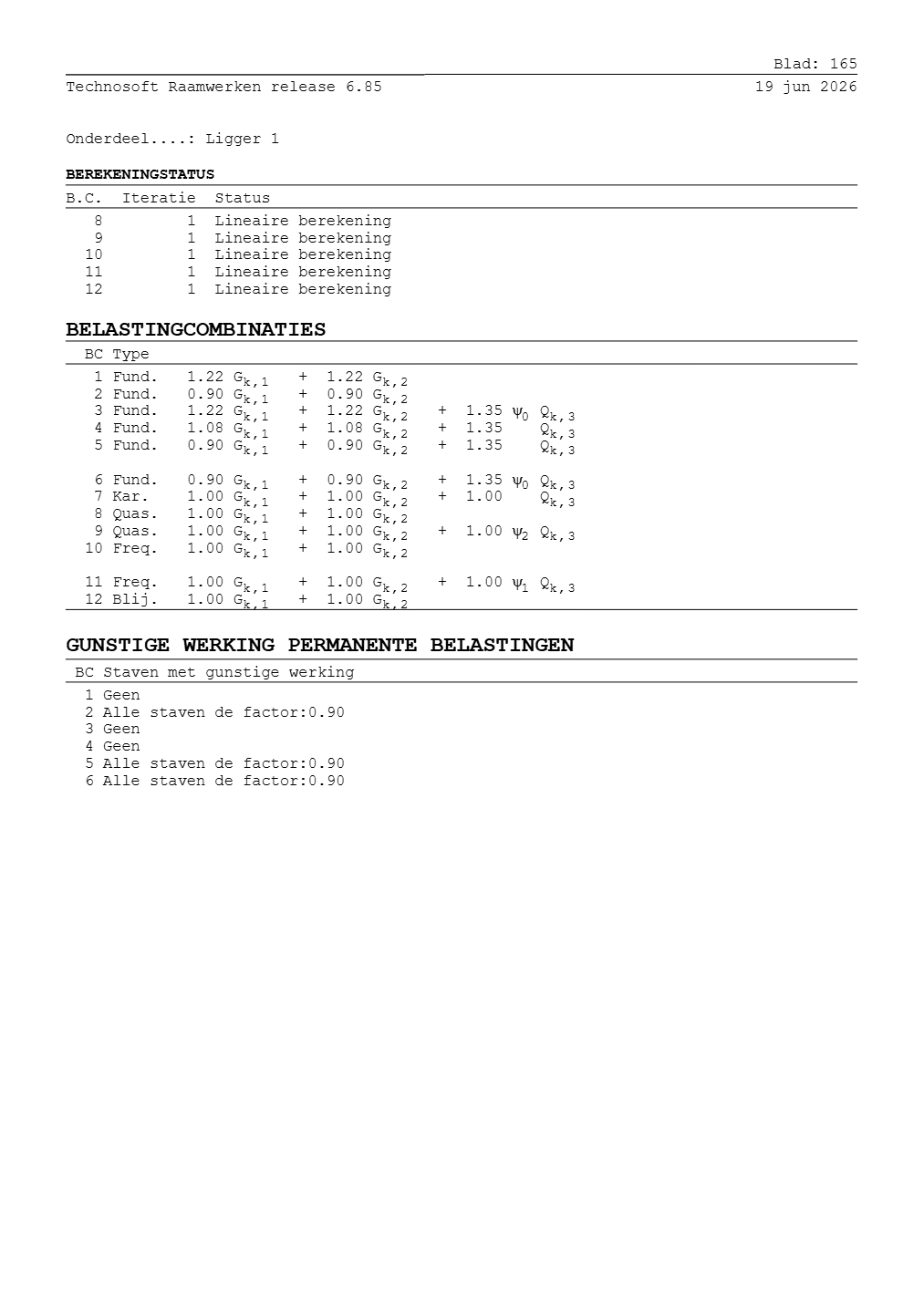

Technosoft Raamwerken output, sheet 165 of Beam 1
Sheet 165

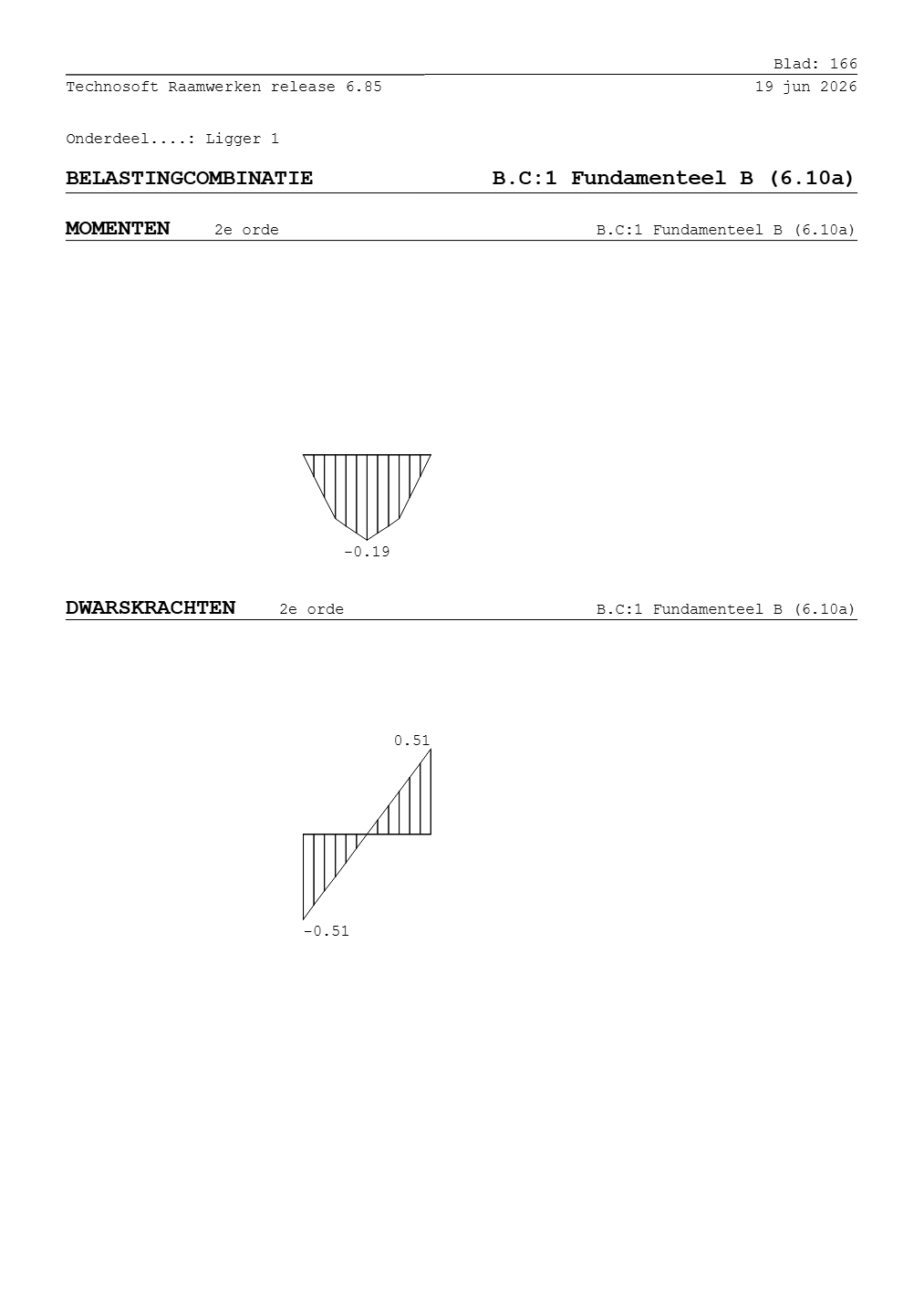

Technosoft Raamwerken output, sheet 166 of Beam 1
Sheet 166
Technosoft Raamwerken output, sheet 167 of Beam 1
Sheet 167
Technosoft Raamwerken output, sheet 168 of Beam 1
Sheet 168

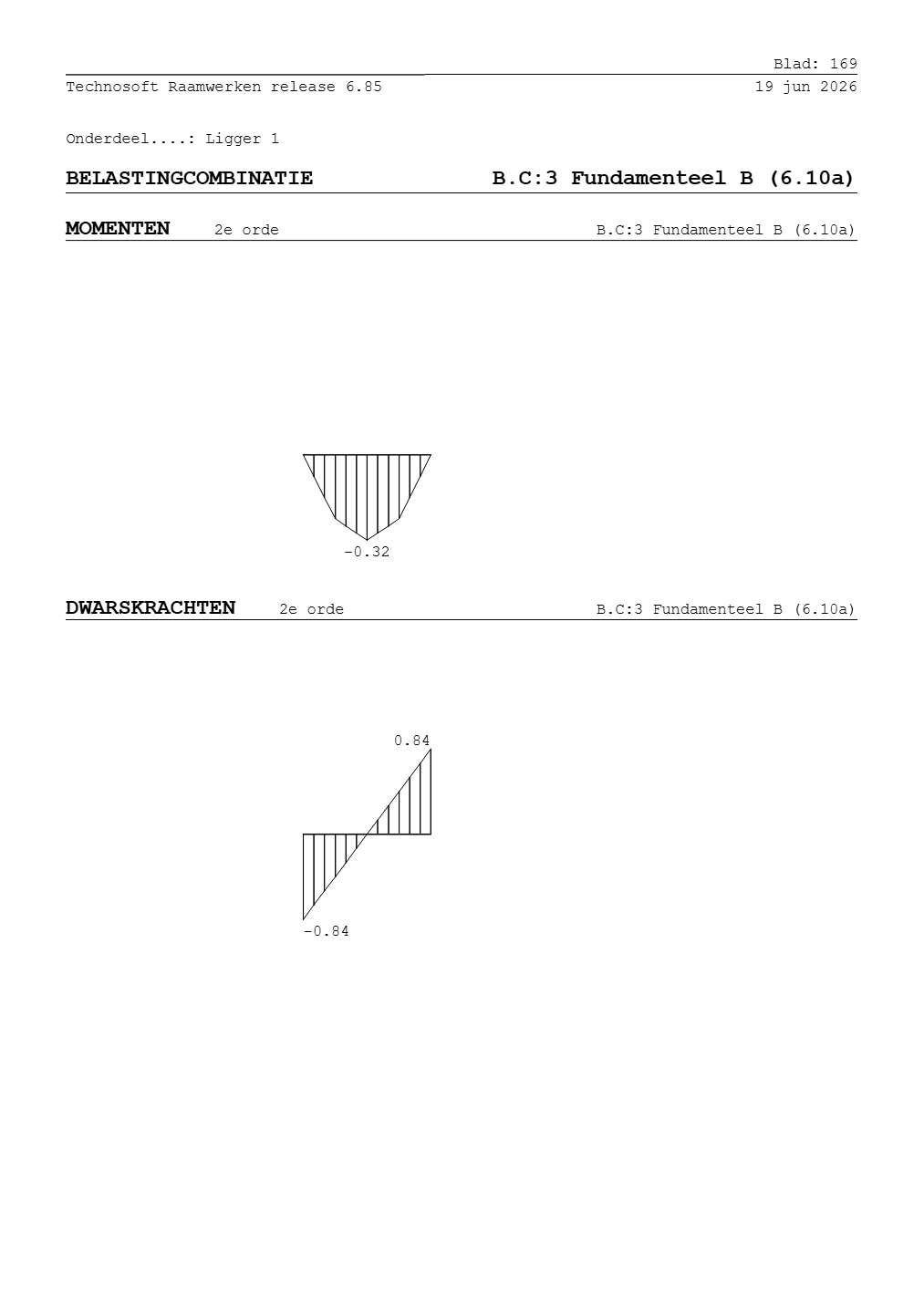

Technosoft Raamwerken output, sheet 169 of Beam 1
Sheet 169
Technosoft Raamwerken output, sheet 170 of Beam 1
Sheet 170

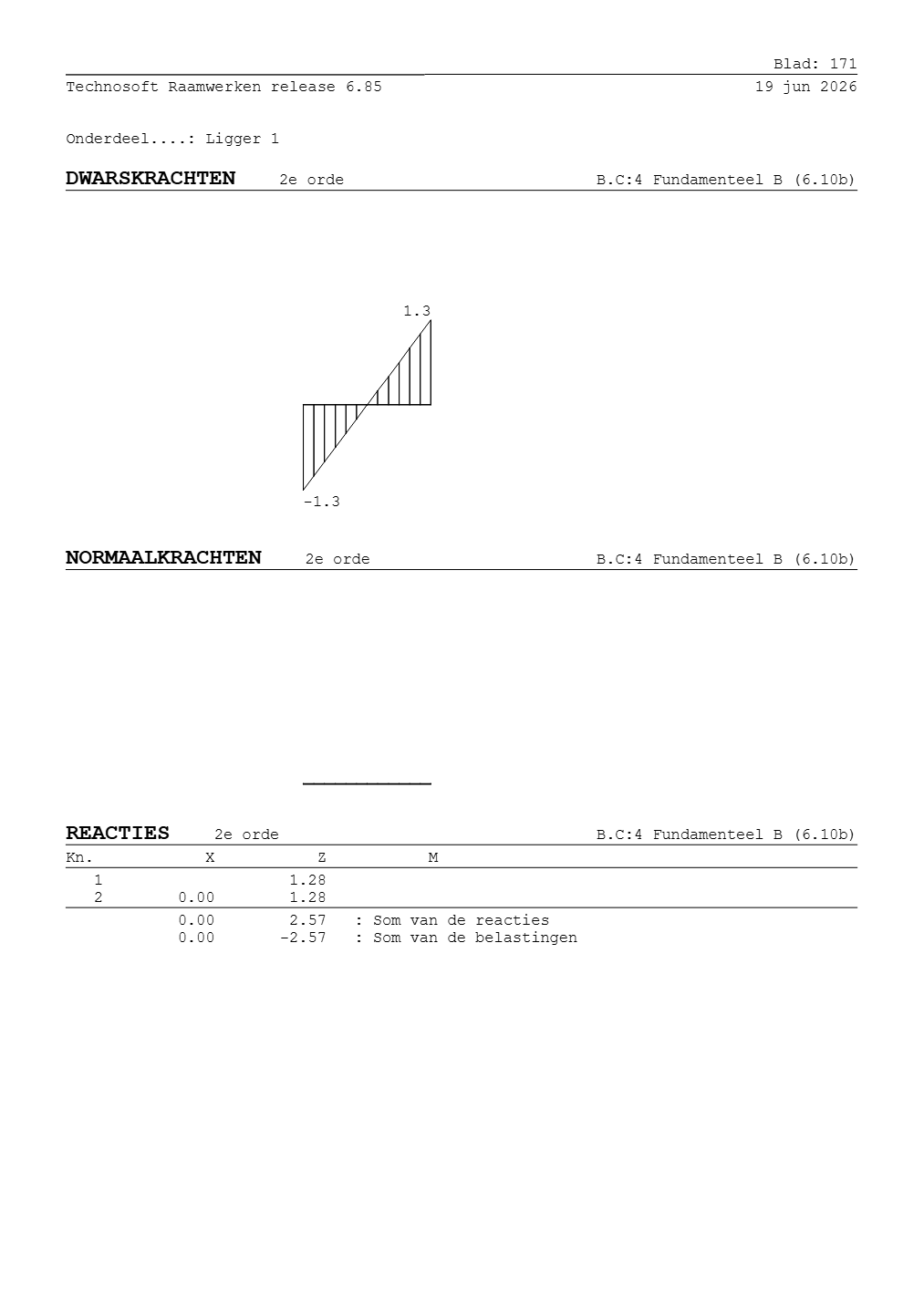

Technosoft Raamwerken output, sheet 171 of Beam 1
Sheet 171

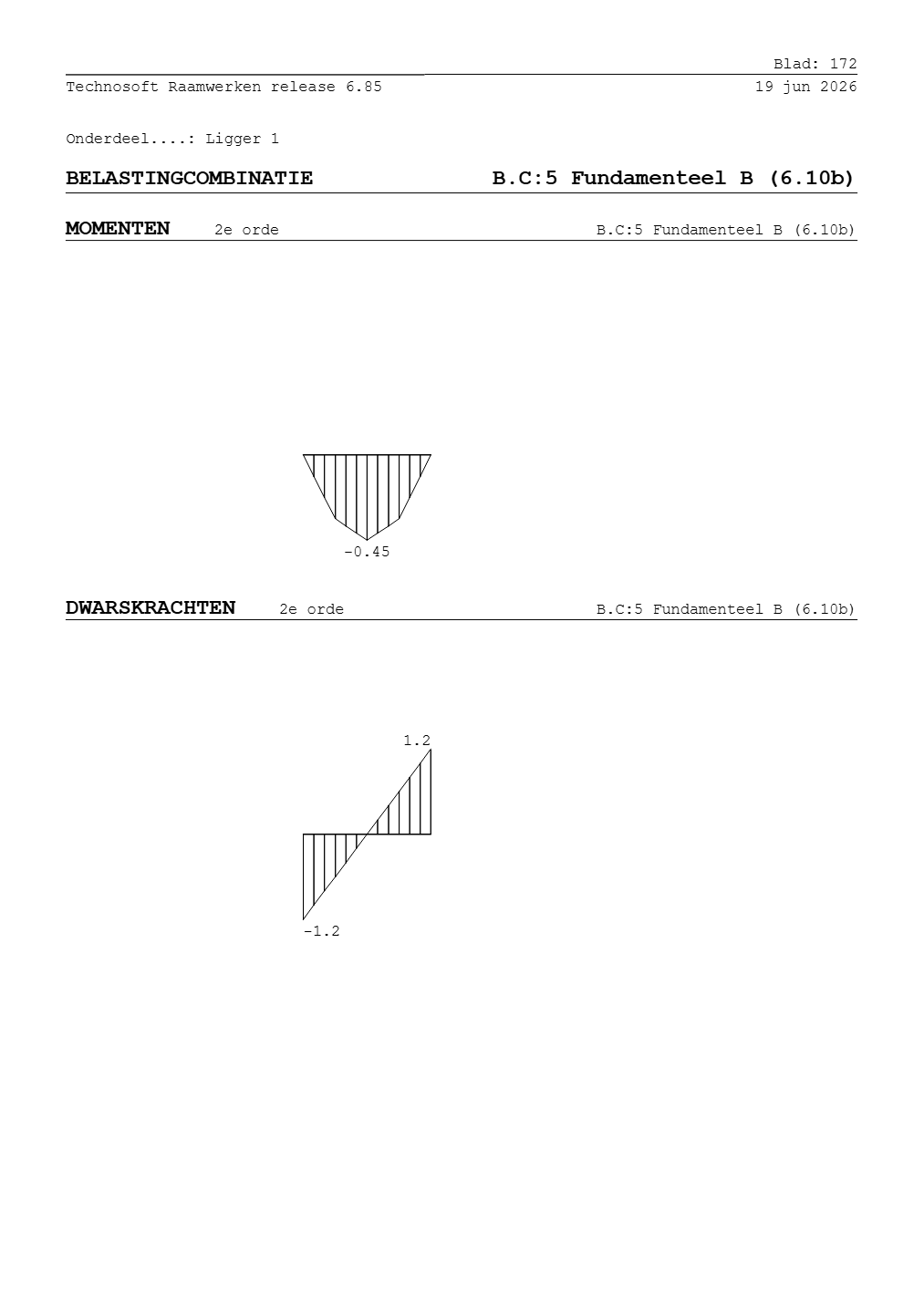

Technosoft Raamwerken output, sheet 172 of Beam 1
Sheet 172

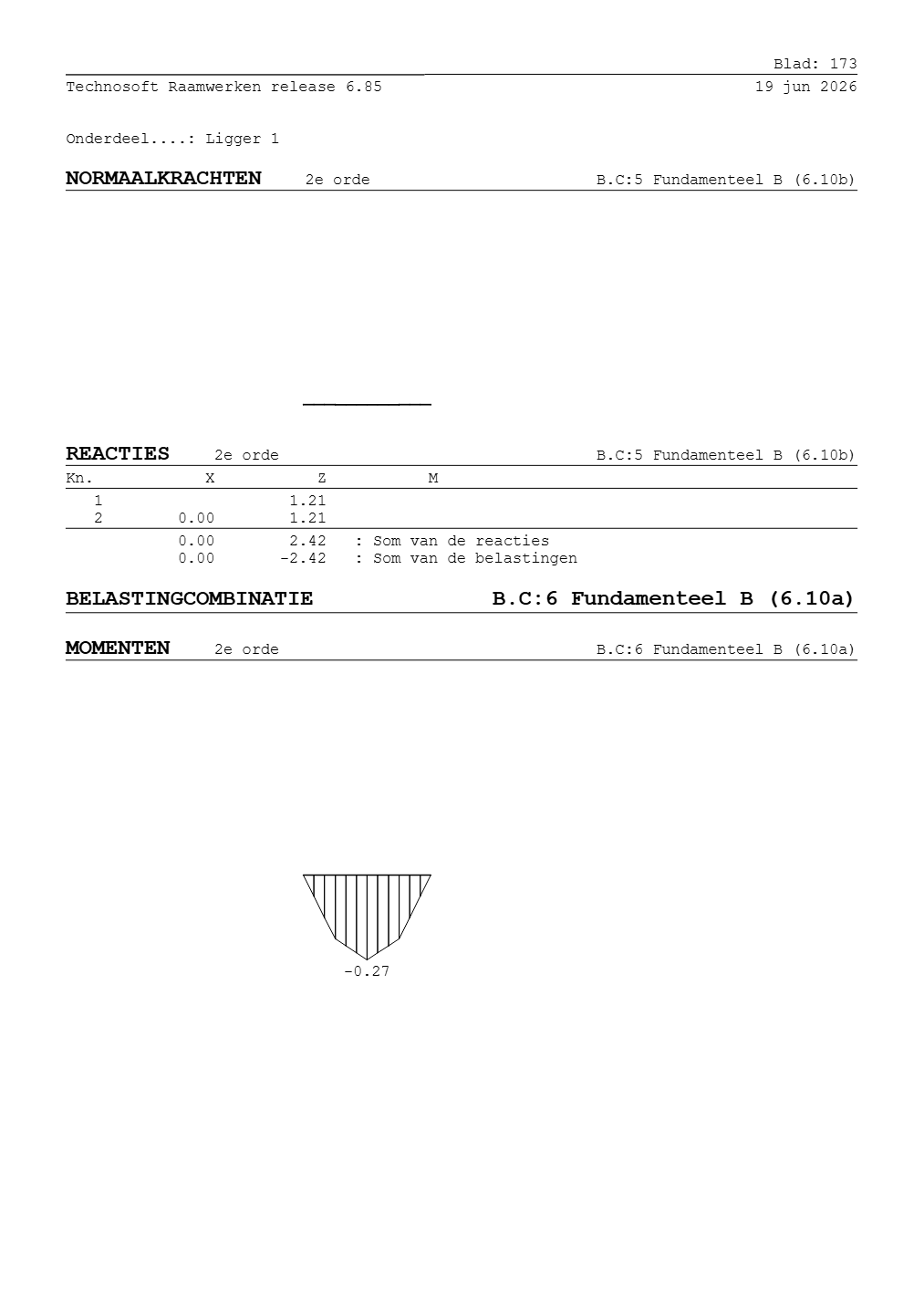

Technosoft Raamwerken output, sheet 173 of Beam 1
Sheet 173
Technosoft Raamwerken output, sheet 174 of Beam 1
Sheet 174

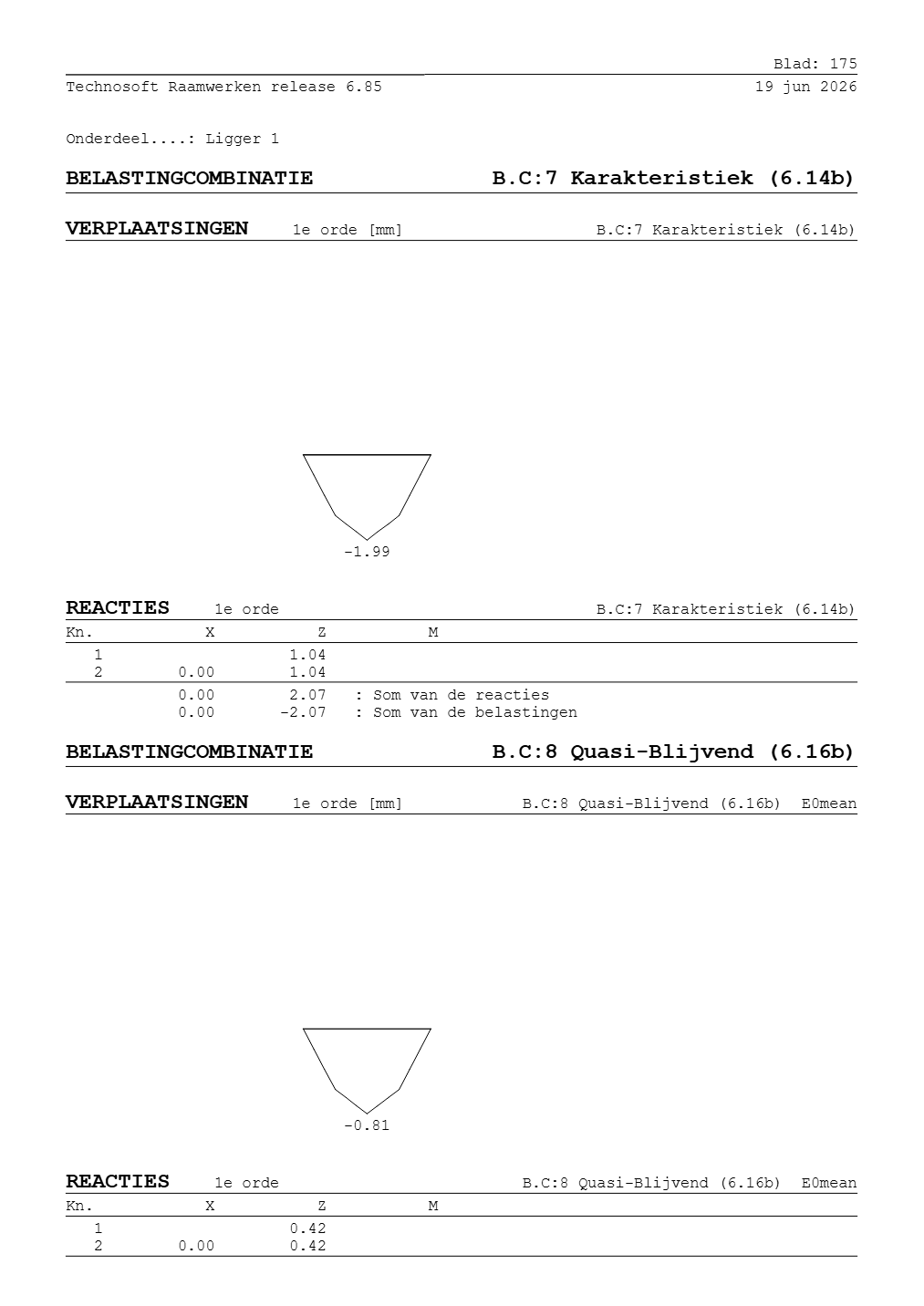

Technosoft Raamwerken output, sheet 175 of Beam 1
Sheet 175

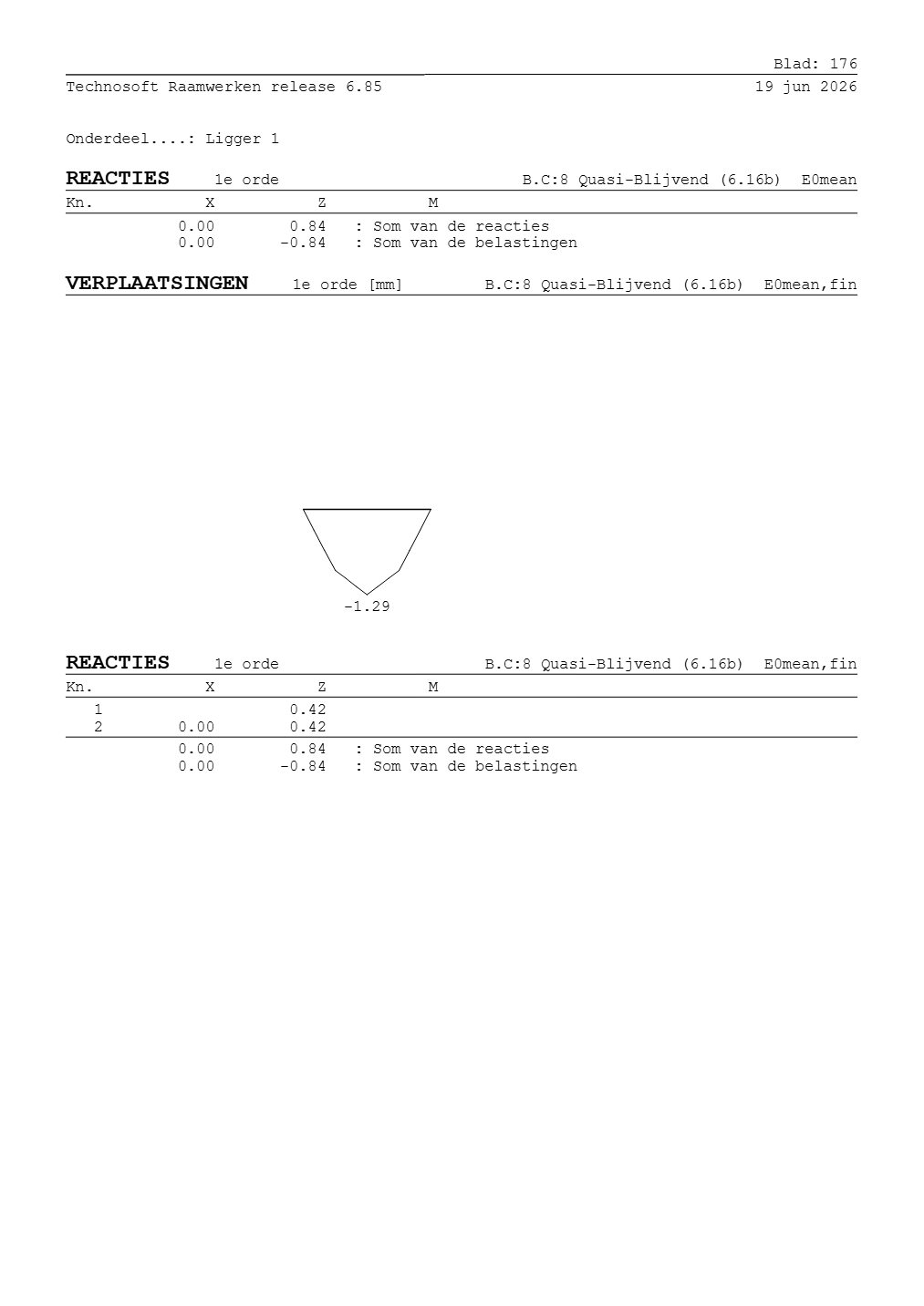

Technosoft Raamwerken output, sheet 176 of Beam 1
Sheet 176

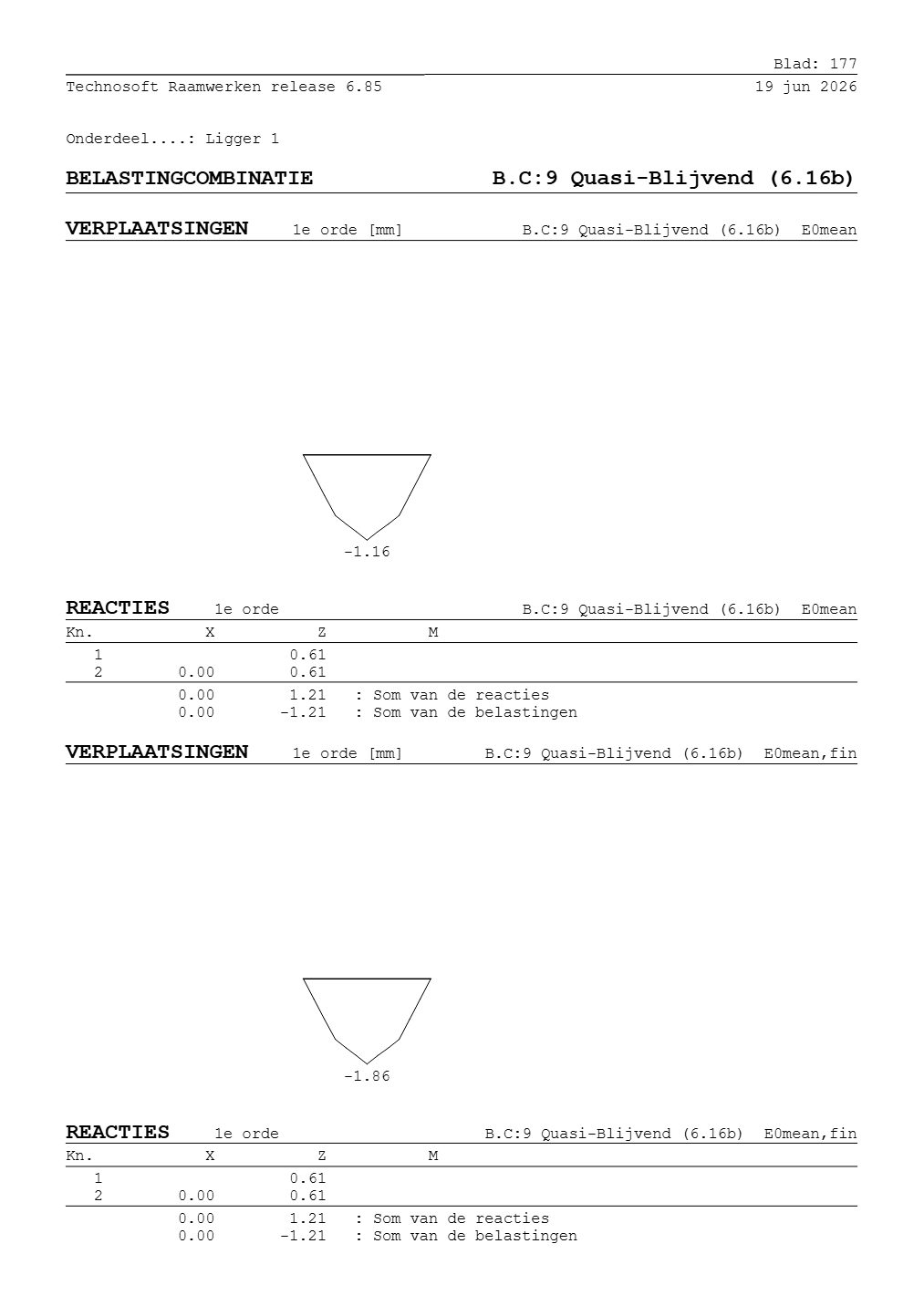

Technosoft Raamwerken output, sheet 177 of Beam 1
Sheet 177

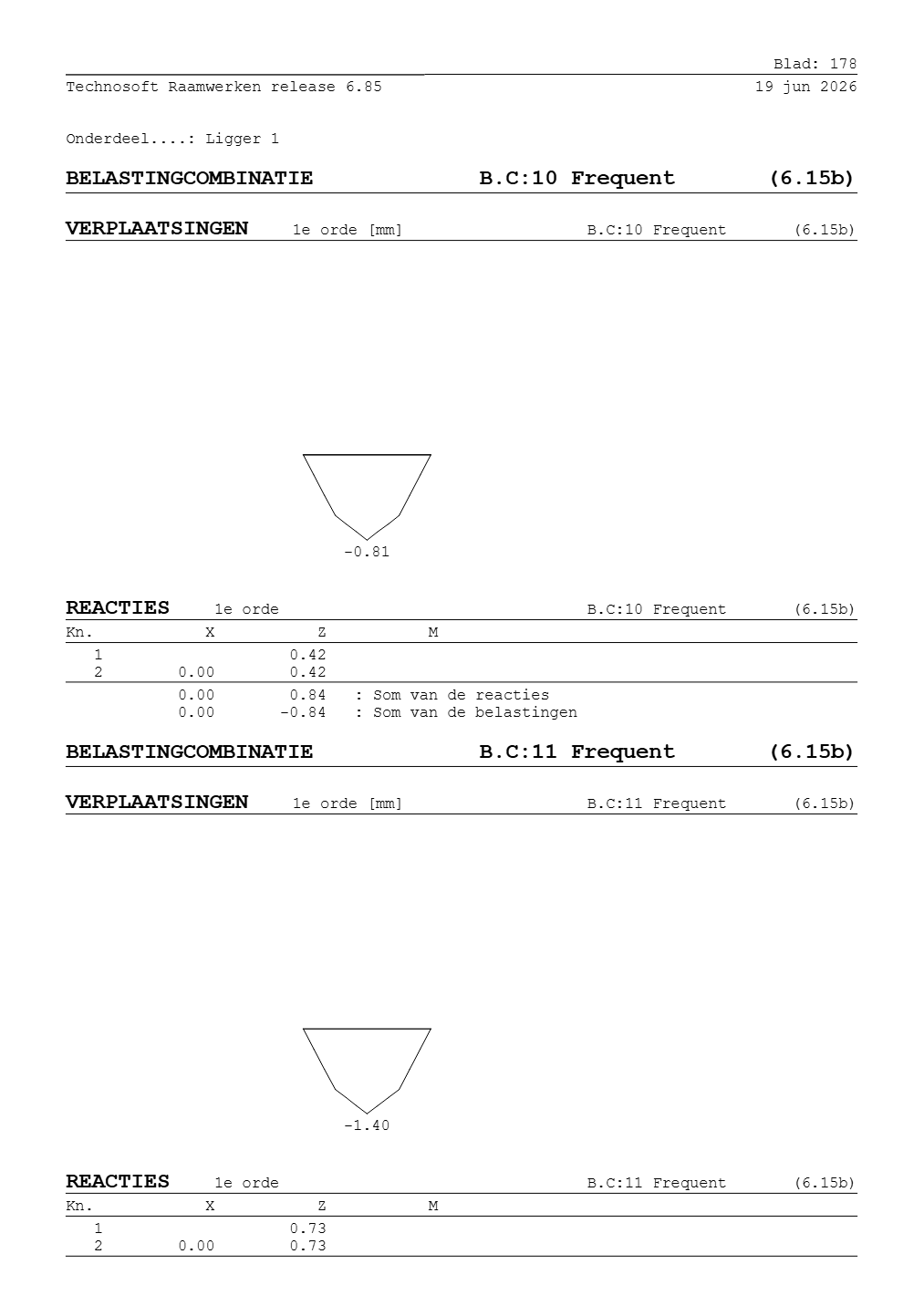

Technosoft Raamwerken output, sheet 178 of Beam 1
Sheet 178

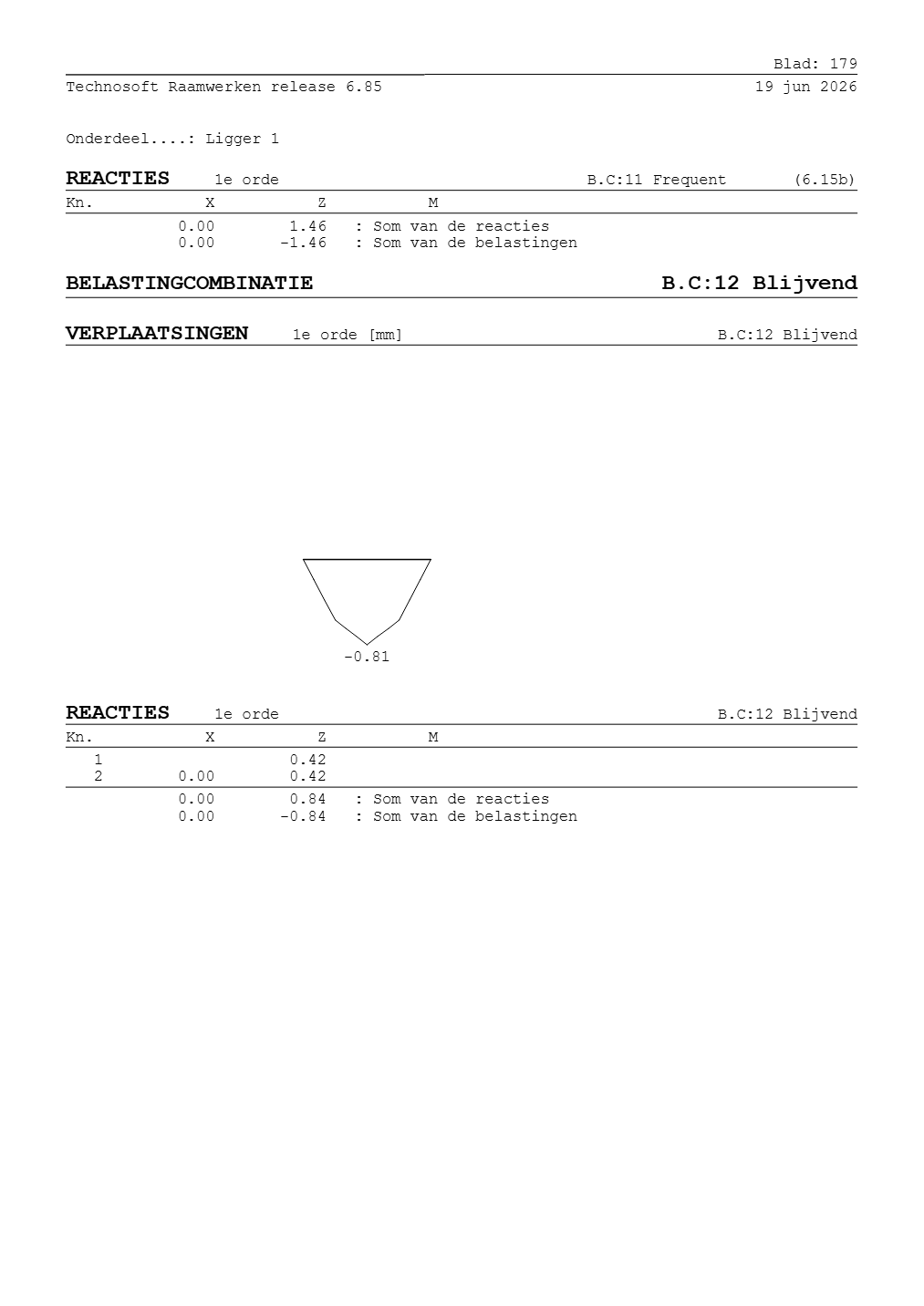

Technosoft Raamwerken output, sheet 179 of Beam 1
Sheet 179

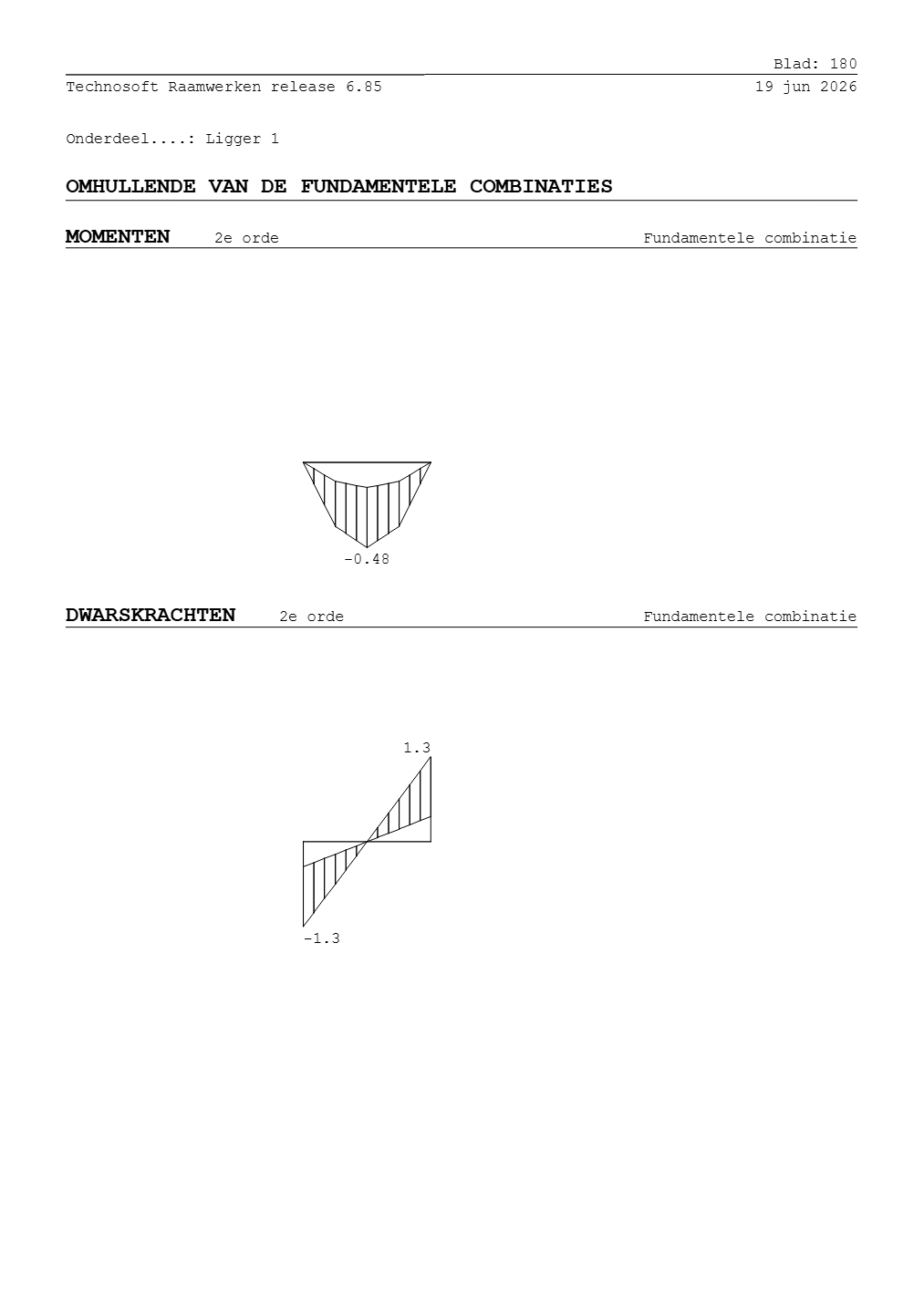

Technosoft Raamwerken output, sheet 180 of Beam 1
Sheet 180
Technosoft Raamwerken output, sheet 181 of Beam 1
Sheet 181

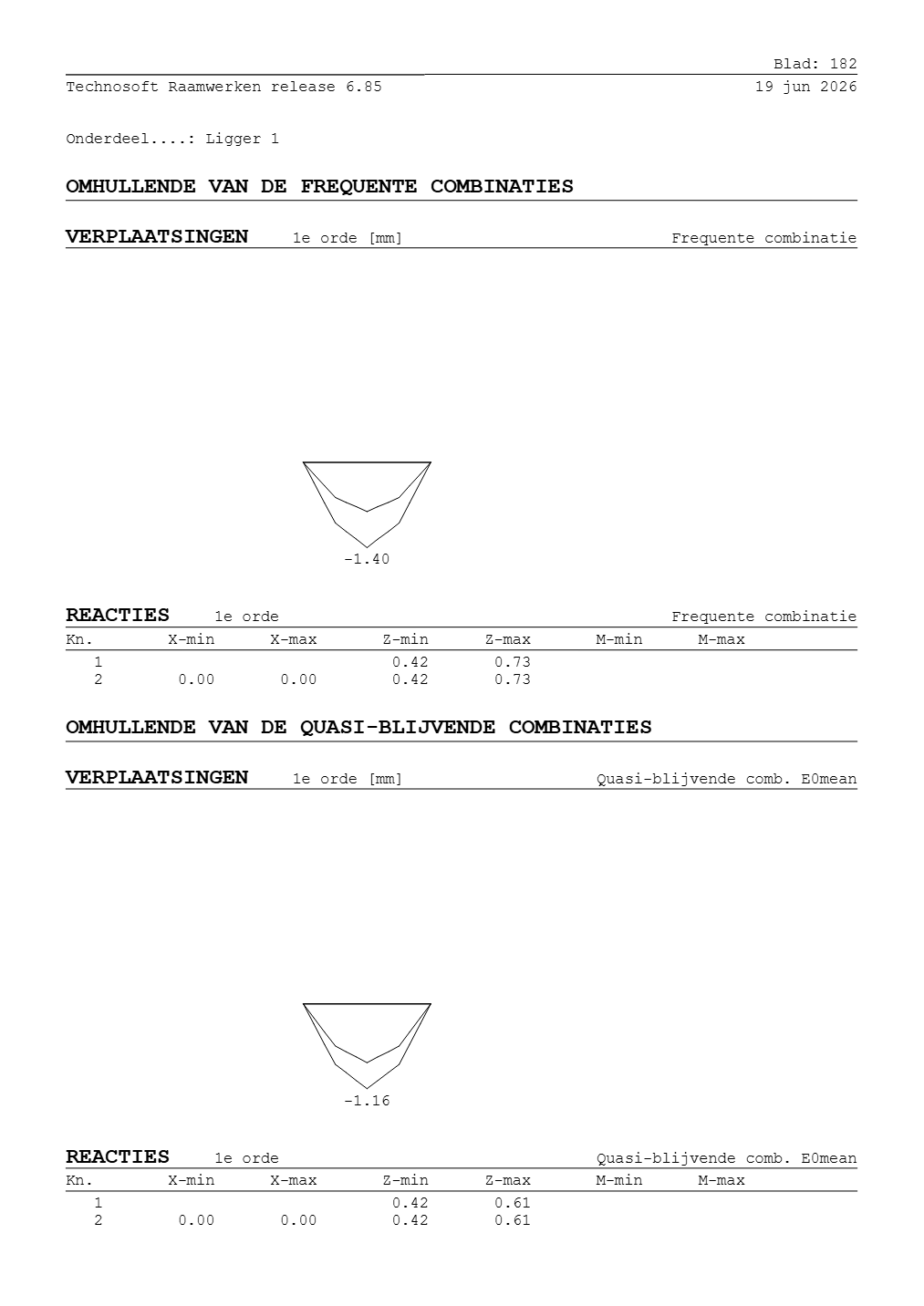

Technosoft Raamwerken output, sheet 182 of Beam 1
Sheet 182

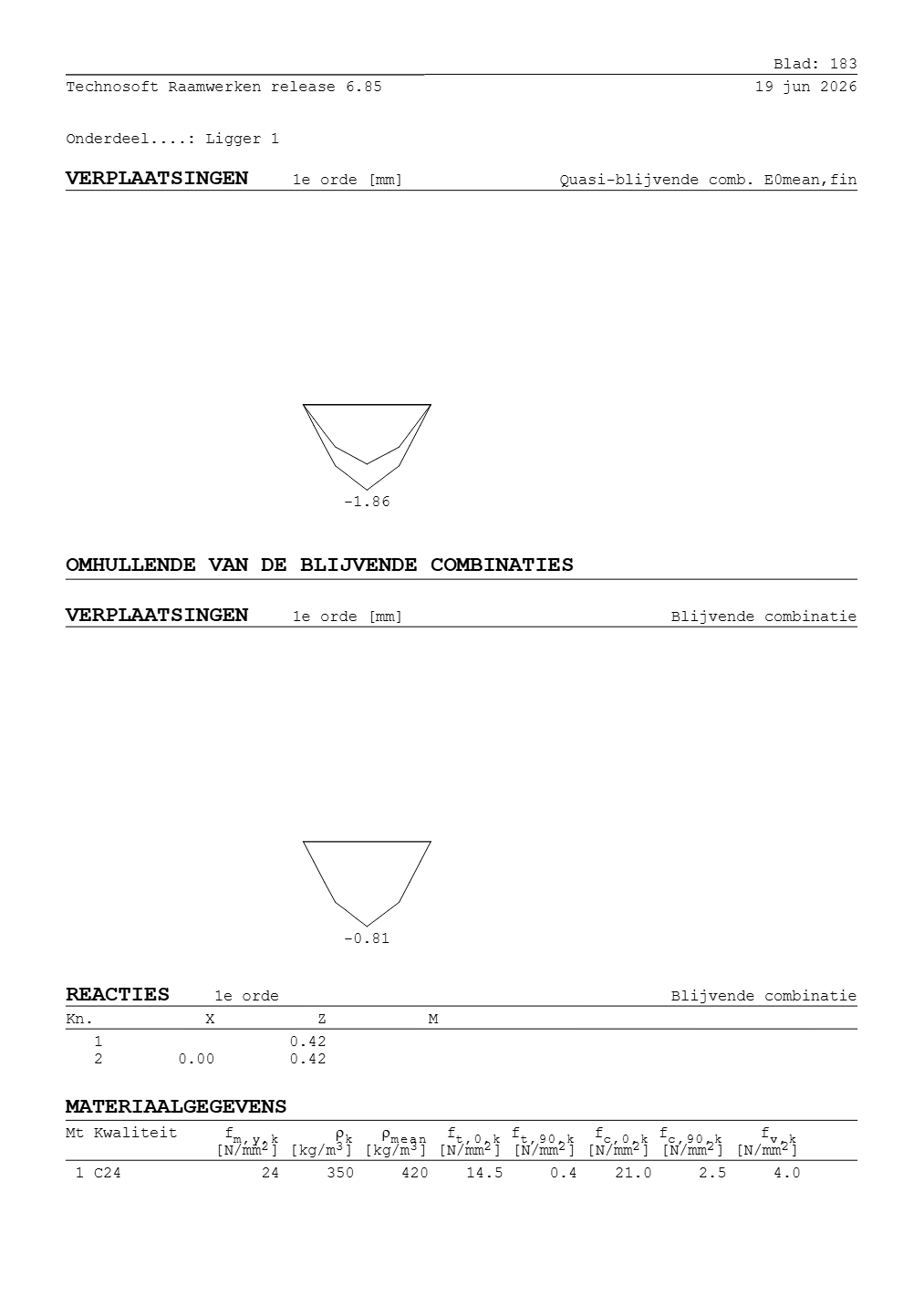

Technosoft Raamwerken output, sheet 183 of Beam 1
Sheet 183

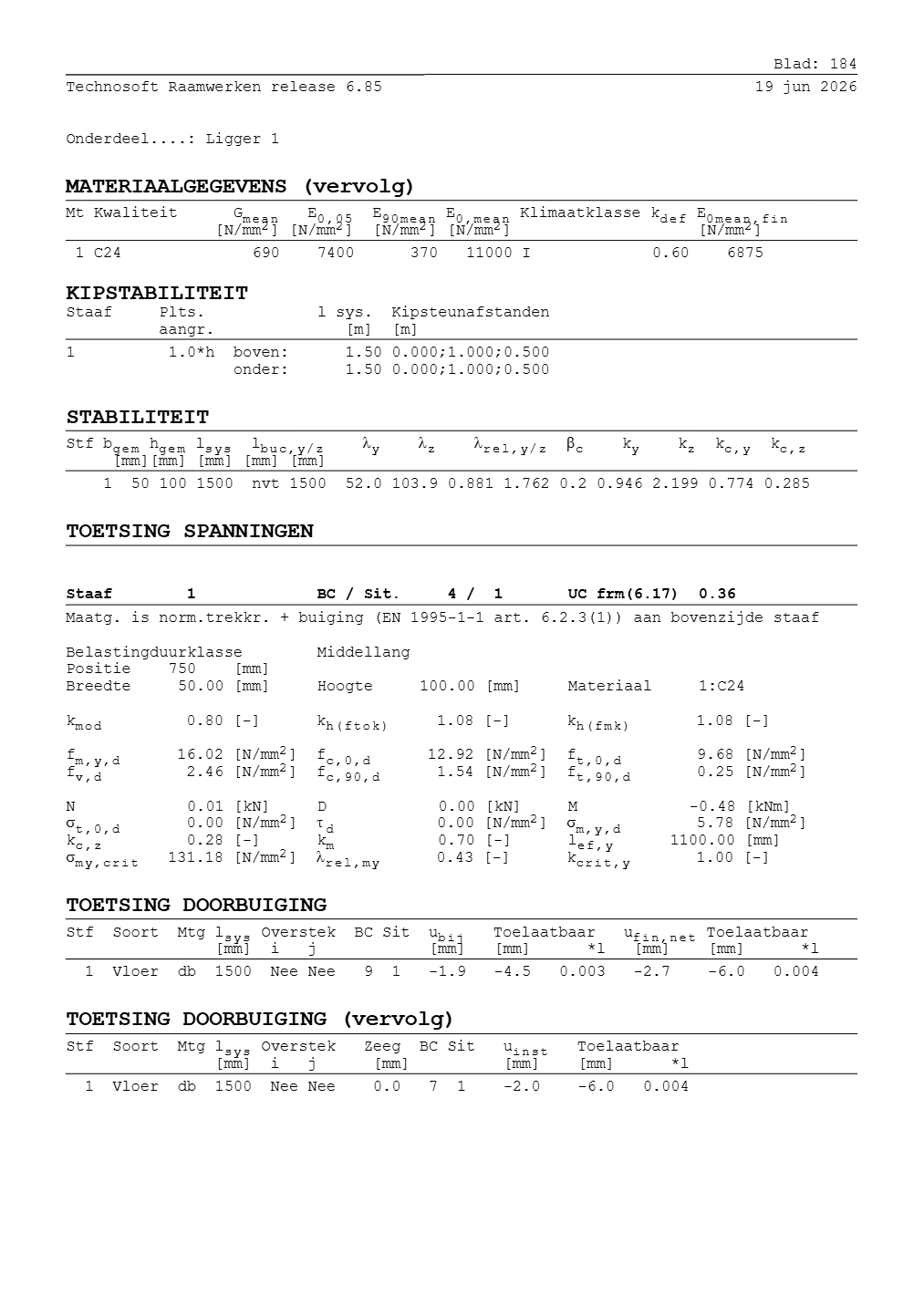

Technosoft Raamwerken output, sheet 184 of Beam 1
Sheet 184

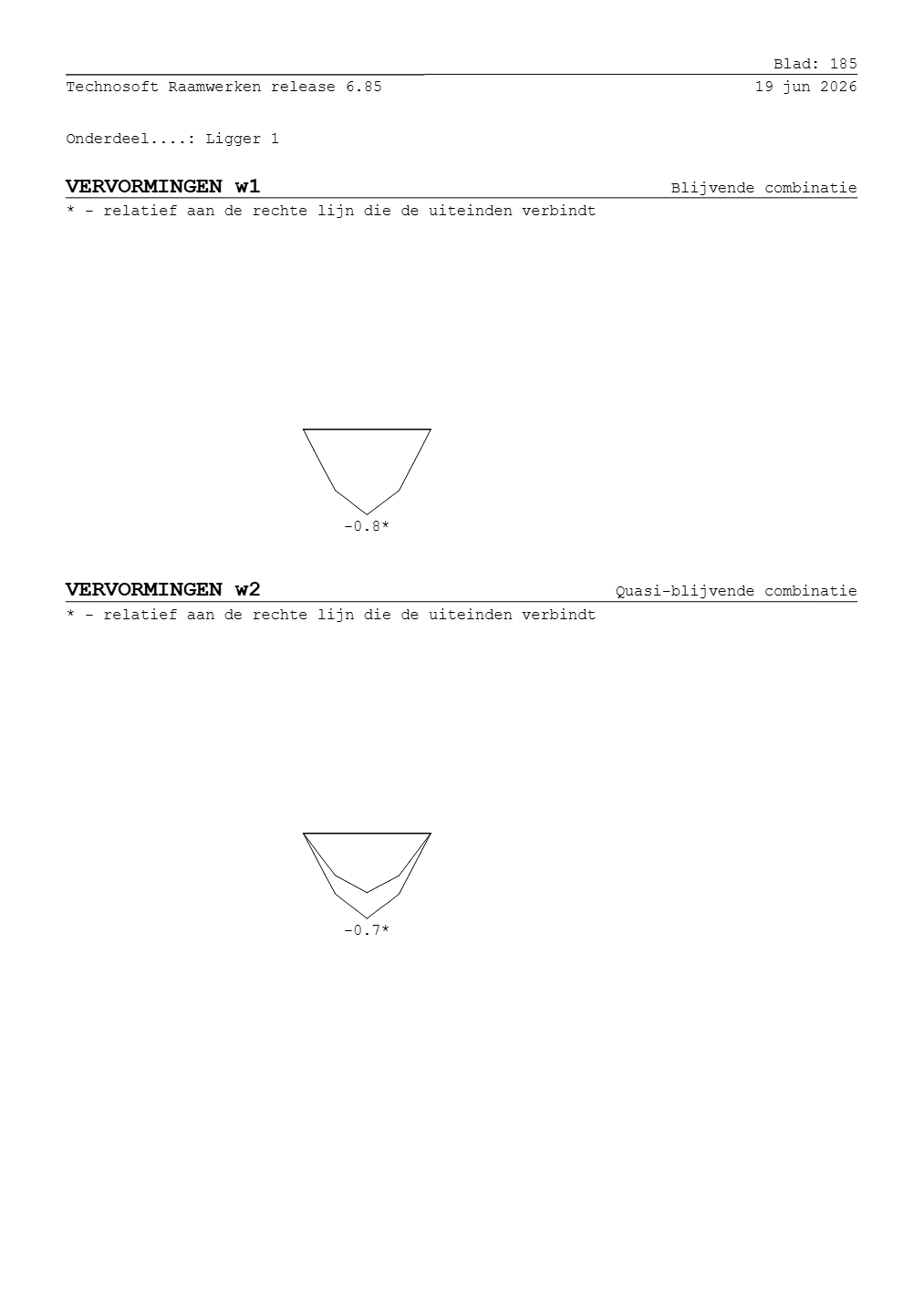

Technosoft Raamwerken output, sheet 185 of Beam 1
Sheet 185

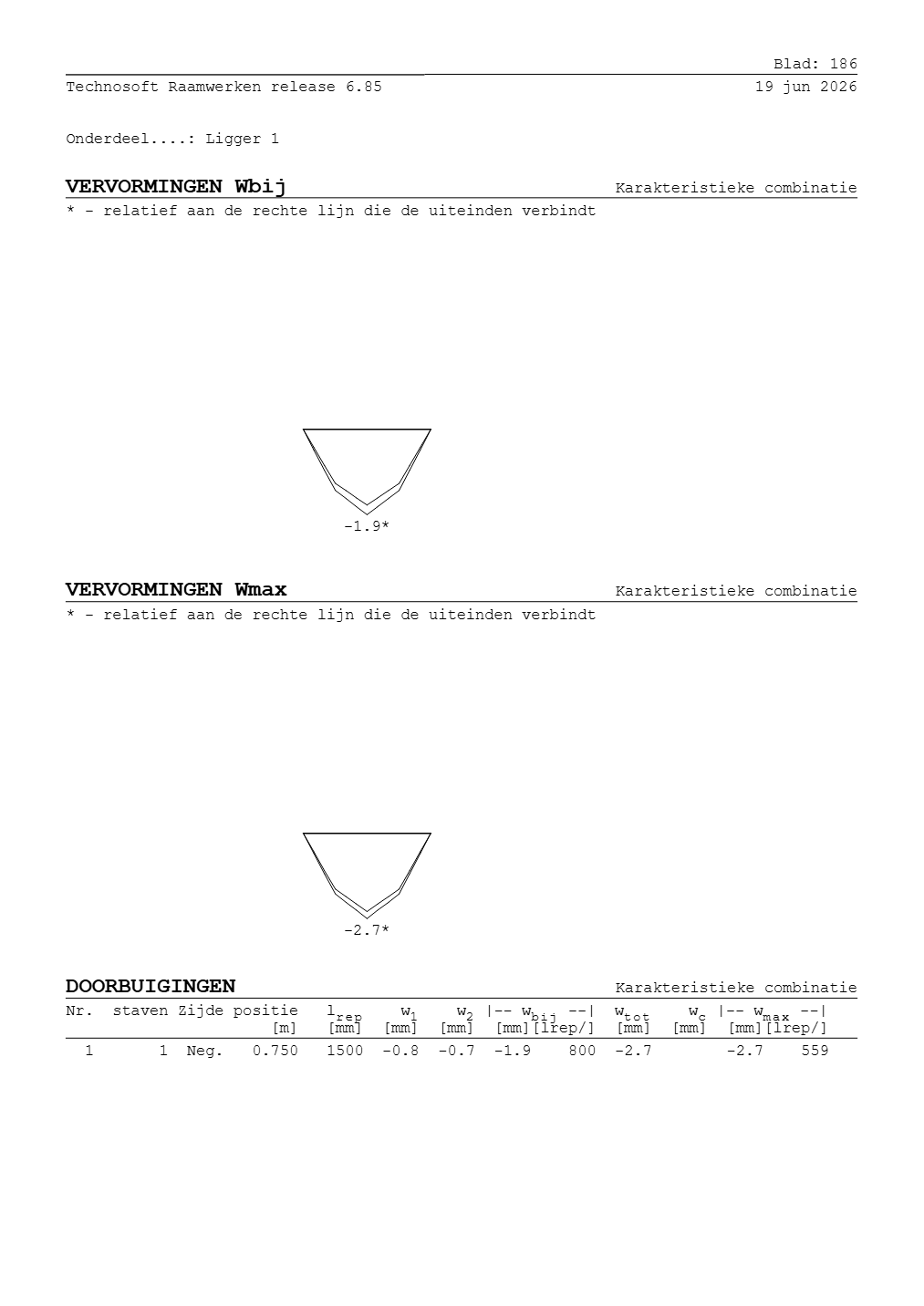

Technosoft Raamwerken output, sheet 186 of Beam 1
Sheet 186

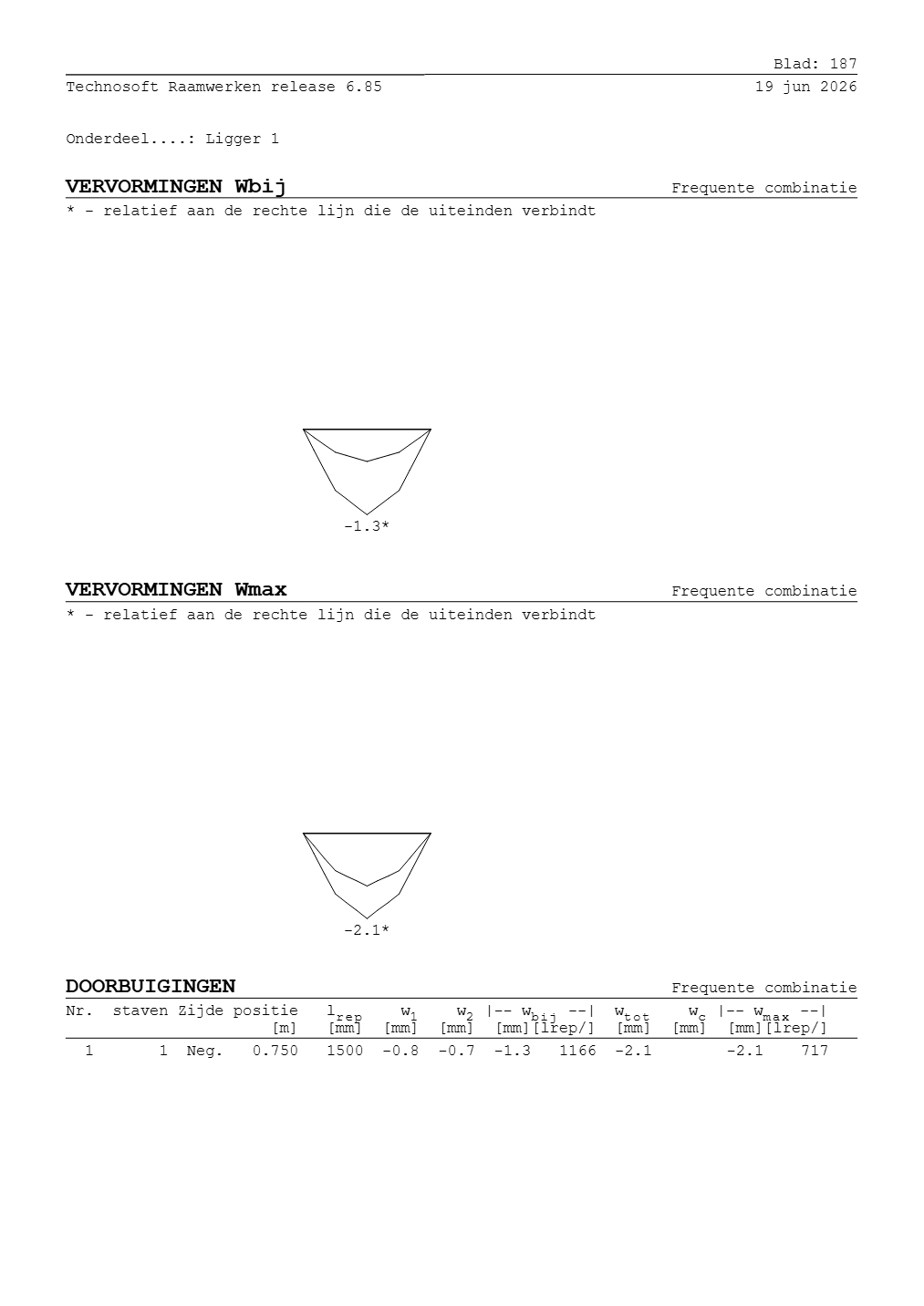

Technosoft Raamwerken output, sheet 187 of Beam 1
Sheet 187

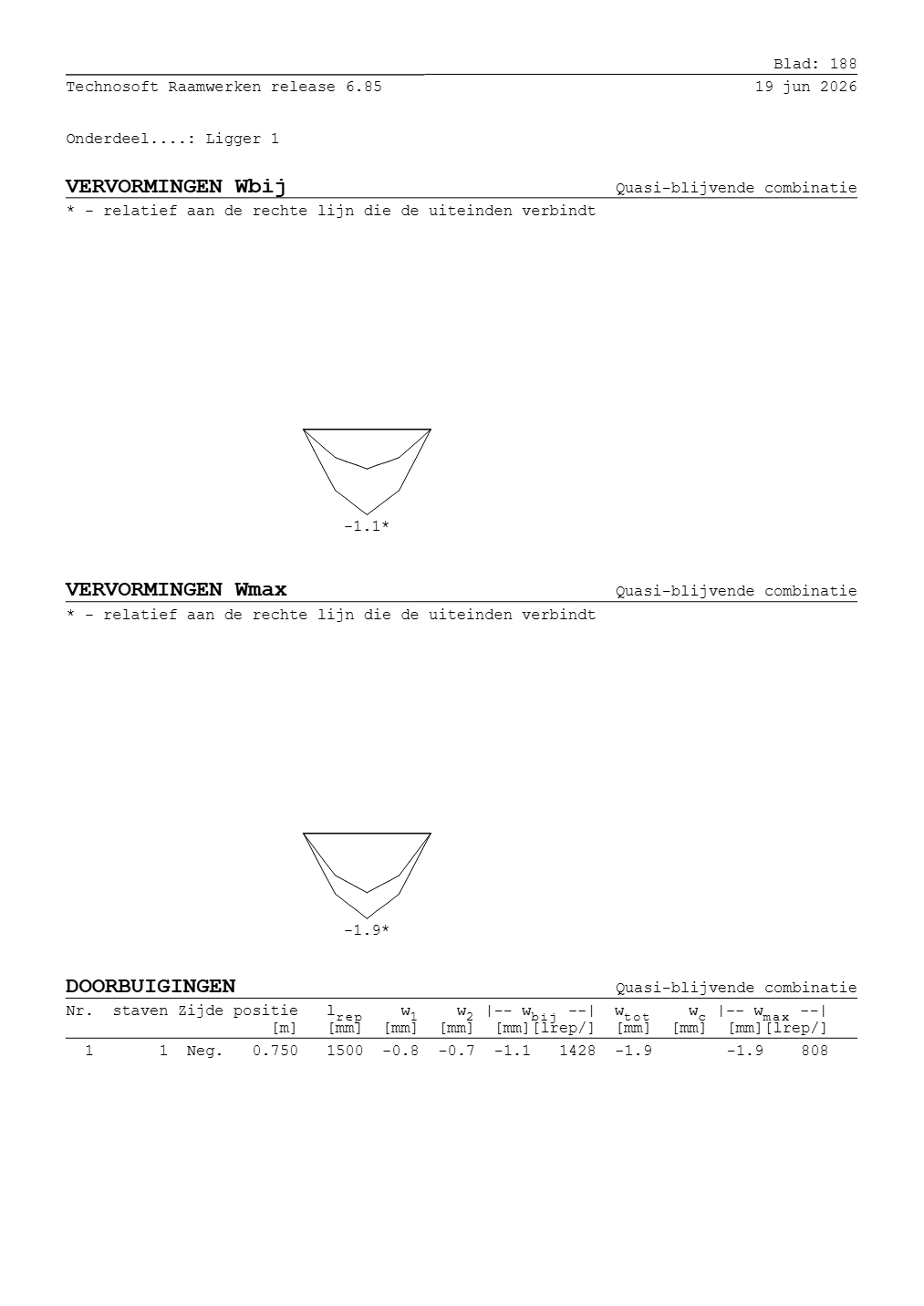

Technosoft Raamwerken output, sheet 188 of Beam 1
Sheet 188
